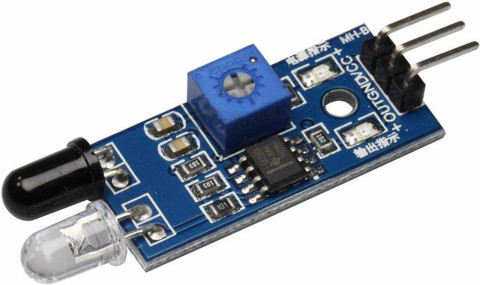

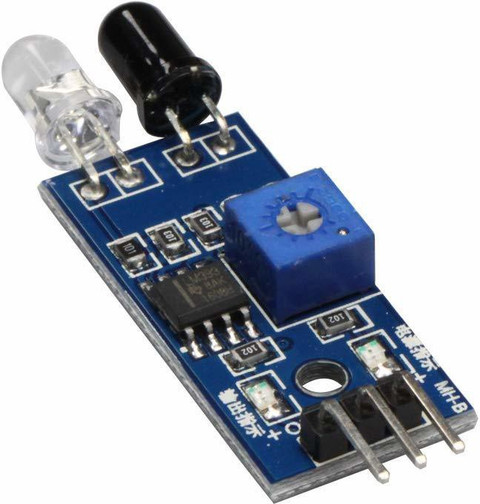

IR Infrared Obstacle Avoidance Sensor Module for Arduino Smart Car Robot - Pack of (2) Electronic Components Electronic Hobby Kit
Electrobot IR Infrared Obstacle Avoidance Sensor Module for Ardui...more
Buy at ₹123
Apply offers for maximum savings
Apply offers for maximum savings!
Product highlights
1 x IR Infrared Obstacle Avoidance Sensor Module for Arduino Smart Car Robot - Pack of (2)
Brand
Electrobot
Model Number
IR Infrared Obstacle Avoidance Sensor Module for Arduino Smart Car Robot - Pack of (2)
Skillset
Sensory Development
Type
Electronic Components
ROHS Complaint
Yes
Material
Epoxy
Age Group
8-10 Years
All details
Features, description and more
Specifications
Description
Manufacturer info
Show More
In the Box
1 x IR Infrared Obstacle Avoidance Sensor Module for Arduino Smart Car Robot - Pack of (2)
General
Brand
Electrobot
Model Number
IR Infrared Obstacle Avoidance Sensor Module for Arduino Smart Car Robot - Pack of (2)
Skillset
Sensory Development
Type
Electronic Components
ROHS Complaint
Yes
Material
Epoxy
Age Group
8-10 Years
Lights
No
Sound
No
Suitable For Gifting
NA
Key Features
IR Infrared Obstacle Avoidance Sensor Module can be widely used in robot obstacle avoidance, obstacle avoidance car, line count, and black and white line tracking and so on, the module detects the distance 2 ~ 30cm, detection angle 35 °, the distance can detect potential is adjusted, The output port OUT sensor module can be directly connected to the microcontroller IO port, you can directly drive a 5V relay, it has a pair of infrared transmitting and receiving tube, tube infrared emit a certain frequency, when detecting direction meet with obstacles (reflecting surface), reflected infrared receiving tube, after the comparator circuit processing, green indicator will light up, at the same time signal output interface to output digital signal (a low level signal)., Can be used for 3-5V DC power supply modules. It has red power indicator.
Dimensions
Width
2 cm
Height
1 cm
Weight
49
Power Features
Battery Type
NA
No Of Batteries
NA
Battery Size
NA
Power Source
DC
Other Power Features
NA
See more

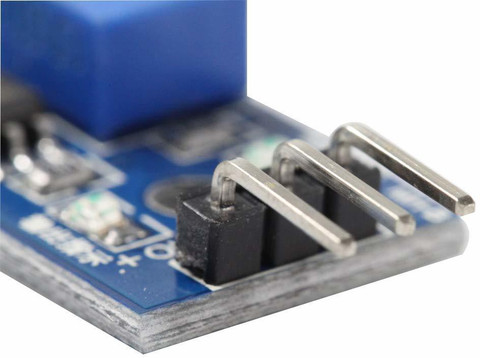

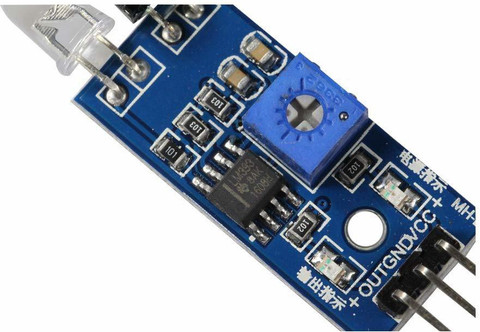

The IR Infrared Obstacle Avoidance Sensor Module detection range can be through the potentiometer to adjust and have small interference, easy to assemble, easy to use. It can be widely used in robot obstacle avoidance, obstacle avoidance car, line count, and black and white line tracking and so on Specification The output port OUT sensor module can be directly connected to the microcontroller IO port , you can directly drive a 5V relay ; the module detects the distance 2 ~ 30cm, detection angle 35 °, the distance can detect potential is adjusted Can be used for 3-5V DC power supply modules When the power is turned on, the red power indicator light Using the comparator LM393 Interface : 1. VCC: External 3.3V-5V voltage (can be directly connected to 5v MCU and 3.3v MCU) 2. GND: GND External 3. OUT: Small board digital output interfaces (0 and 1) Connection : VCC-VCC; GND-GND; OUT-IO With the screw holes of 3mm , easy fixed installation
See more
Generic Name
Electronic Hobby Kit
Country of Origin
India
Name and address of the Manufacturer
Electrobot Pvt Ltd
Name and address of the Packer
Electrobot Pvt Ltd
