Electrobot Ultrasonic Distance Sensor Starter kit for Raspberry P...

more

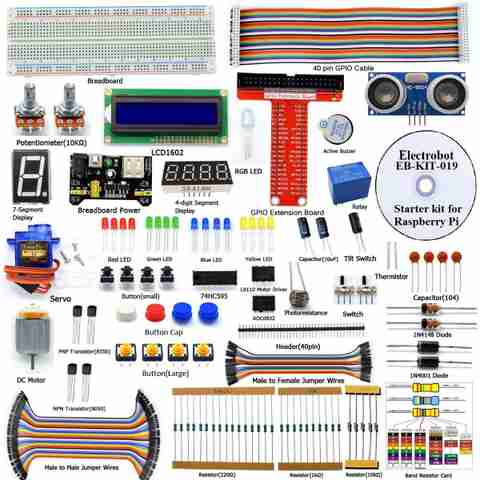

This is an Ultrasonic Distance Sensor Starter Learning kit for Raspberry Pi. The kit contains more than 150 components and electronic modules. We have prepared a guidebook(113 pages PDF) and supporting experimental code routine for you to learn. The guide book includes 18 experiments, and the code is divided into two versions(C and Python). Package List: 1x DC Motor, 1x Servo, 1x Relay, 1x Ultrasonic distance sensor, 1x Ultrasonic distance sensor holder, 1x L9110 motor driver, 1x LCD1602, 1x ADC0832, 1x 74HC595, 1x 7-Segment Display, 1x 4-bit 7-segment display, 1x Light Sensor (Photoresistor), 1x Analog Temperature Sensor (Thermistor), 1x 40 pin GPIO Extension Board, 1x 40 pin GPIO Cable, 1x Breadboard Power Supply Module, 1x Active Buzzer, 1x Tilt switch, 2x Switch, 1x RGB LED, 4x Red LED, 4x Green LED, 4x Yellow LED, 4x Blue LED, 16x Resistor(220O), 10x Resistor(1kO), 5x Resistor(10kO), 4x Capacitor (104), 2x Capacitor (10uF), 4x Button (large), 4x Button (small), 1x Button cap (red), 1x Button cap (white), 2x Button cap (blue), 2x NPN Transistor (8050), 2x PNP Transistor (8550), 2x 1N4148 Diode, 2x 1N4001 Diode, 2x Potentiometer (10KO), 1x Breadboard, 40x Male to Male Jumper Wires, 20x Male to Female Jumper Wires, 1x Header (40pin), 1x Band Resistor Card, 1x Project Box Lessons: About the Raspberry Pi, Raspberry Pi Pin Numbering Introduction, Raspberry Pi GPIO Library Introduction, How to Use wiringPi and RPi.GPIO, Lesson 1 Blinking LED, Lesson 2 Active Buzzer, Lesson 3 Tilt Switch, Lesson 4 Controlling an LED by Button, Lesson 5 Relay, Lesson 6 LED Flowing Lights, Lesson 7 Breathing LED, Lesson 8 Controlling an RGB LED with PWM, Lesson 9 7-Segment Display, Lesson 10 4-Digit 7-Segment Display, Lesson 11 LCD1602, Lesson 12 A Simple Voltmeter, Lesson 13 Measuring Distance, Lesson 14 Photoresistor, Lesson 15 Thermistor, Lesson 16 Controlling an LED Through LAN, Lesson 17 DC Motor, Lesson 18 How to Control A Servo
