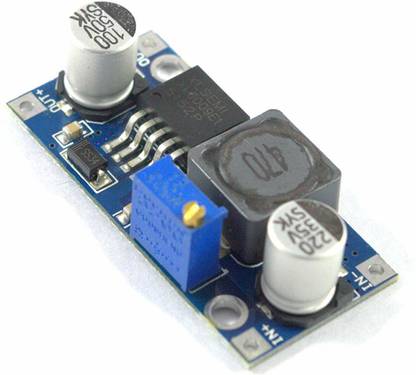

Electrobot XL6009 Boost Converter Module DC to DC 3.0-30 V to 5-35 V Output Voltage Adjustable Step-up Circuit Board Power Supply Electronic Hobby Kit

DSN6009 4A is a high-performance step-up switching current (BOOST) module. The module uses the second generation of high-frequency switching technology XL6009E1 core chip performance than the first generation technology LM2577. XL6009 boost module at a lower cost, superior performance, LM2577 module is about to be eliminated. Wide input voltage 3V ~ 32V, optimum operating voltage range is 5 ~ 32V; Wide Output voltage 5V ~ 35V; Built-4A efficient MOSFET switches enable efficiency up to 94%; (LM2577 current is 3A) high switching frequency 400KHz, can use a small-capacity filter capacitors that can achieve very good results, the ripple smaller and smaller. (LM2577 frequency only 50KHz) Test comparison sample reference: Input 3V Output 12V 0.4A 4.8W Input 5V Output 12V 0.8A 9.6W Input 7.4V Output 12V 1.5A 18W Input 12V Output 15V 2A 30W Input 12V Output 16V 2A 32W Input 12V Output 18V 1.6A 28.8W Input 12V Output 19V 1.5A 28.5W Input 12V Output 24V 1 A 24W Vin * Iin * Efficiency = Vout * Iout Vin: Input Voltage Iin: input current Vout: Output Voltage Iout: output current Technical parameters: Model Specification : DSN6009 boost module Module Properties : Non-isolated boost (BOOST) Rectification : Non-Synchronous Rectification Input Range : 3V ~ 32V Output Range : 5V ~ 35V Input Current : 4A (max), no-load 18mA (5V input, 8V output , no-load is less than 18mA. Higher the voltage, the greater the load current.) Conversion efficiency : <94% (greater the pressure, the lower the efficiency) Switching frequency : 400KHz Output Ripple : 50mV (the higher the voltage, the greater the current, the greater the ripple) Load Regulation : ± 0.5% Voltage Regulation : ± 0.5% Operating Temperature : -40 ° ~ +85 °
