electrolight 350W 5-36V BLDC Three-Phase DC Motor Controller With Hall Sensor Motor VR Speed Motor Control Electronic Hobby Kit
Price: Not Available
Currently Unavailable
Highlights
Power Source: Battery, DC
Material: Epoxy
Weight: 155
Description
350W 5-36V BLDC Three-Phase DC Brushless With Hall Motor Controller Sensor less Brushless Motor Durable VR Speed Signal Input
Feature:

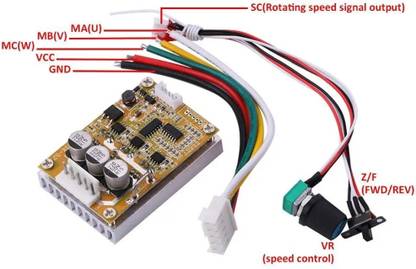

1.MA, MB, MC phase, motor U, V, W
2.VCC GND external DC power supply line
3.SC pulse signal output
4.Rotation Direction Jumper
5.VR speed signal input, the general external 100K tripod middle pin potentiometer VR the remaining two feet 5V and GND main
board.
Specifications:
Working voltage: 5-36V
Maximum current: 16A
Maximum power: 350W
Over current protection
Size: length 63mm x width 45mm x height 27mm
Package includes:
1PCS x Brushless Controller Set
Read More
Specifications
In The Box
1 PC 350W 5-36V BLDC Three-Phase DC Motor Controller With Hall Sensor
General
Brand
electrolight
Model Number
350W 5-36V BLDC Three-Phase DC Motor Controller With Hall Sensor Motor VR Speed
Skillset
Motor Skills
Type
Motor Control
Minimum Age
12
ROHS Complaint
No
Material
Epoxy
Age Group
16+ Years
Lights
No
Sound
No
Suitable For Gifting
NA
Gift Pack
No
Net Quantity
1
Dimensions
Width
4.2 cm
Height
6.73 cm
Weight
155
Power Features
Battery Type
5VDC-36VDC
No Of Batteries
1-3
Battery Size
ANY
Power Source
Battery, DC
Power Consumption
350
Other Power Features
BATTERY
