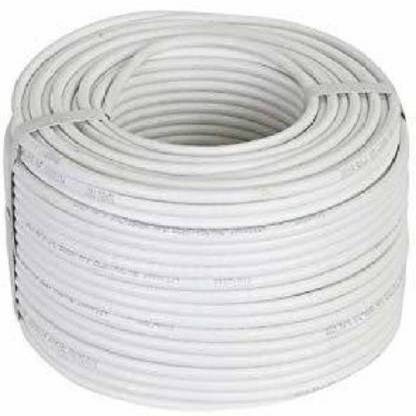

Electroline PVC, Aluminium 1 sq/mm White 100 m Wire  (White)

Electroline RG-6 Co-Axial Cable 100 Meter Electroline coaxial cable transmits high – frequency electrical signals through connectors without interference. Co-axial cable comes in types of verities Like RG6, RG11, RG59, It has own qualities in TRI and M model. Every Model has their Specifications according to uses. Coaxial Cable 75 ohm RG 6 used for the distribution of cable TV and satellite TV in residential or commercial premises. Bonded Laminated aluminum tape 60% Braid, PVC Jacket ?Center conductor ?High density copper ?Nominal diameter- 0.064” (1.63 mm) ?Dielectric: ?Gas Expanded Polyethylene ?Nominal Diameter over Dielectric: 0.280” (7.11 mm) ?Shield: ?1st Shield Laminated Aluminum Tape Bonded to the Dielectric ?Nominal Diameter over Tape: 0.287” (7.29 mm) ?2nd shield: 34 AWG Aluminum Braid wire ?60% Coverage ?Jacket: ?PVC ?Nominal Diameter over Jacket: 0.400” (10.16 mm) ?Nominal Jacket Thickness: 0.042” (1.07 mm) ?Electrical Properties: ?Impedance: 75.0 +/-3.0 Ohms ?Velocity of Propagation: 85.0% Nominal ?Structural Return Loss: 5 MHz to 1000 MHz ? 20db, 1000MHz to 3000 MHz ?15db ?Nominal DC Resistance (Ohms/km): Center Conductor: 41.0, Outer Conductor: 22.5 ?Attenuation @68 °F (20 °C)
