Electronic Spices PACK OF 2 KY-032 4pin IR Infrared Obstacle Avoidance Sensor Module Diy Smart Car Robot KY032 Electronic Components Electronic Hobby Kit

Electronic Spices PACK OF 2 KY-032 4pin IR Infrared Obstacle Avoidance Sensor Module Diy Smart Car Robot KY032 Electronic Components Electronic Hobby Kit

Price: Not Available
Currently Unavailable
Highlights
  • Power Source: DC
  • RoHS Compliant
  • Material: Aluminium Alloy
  • Weight: 0.2
Description

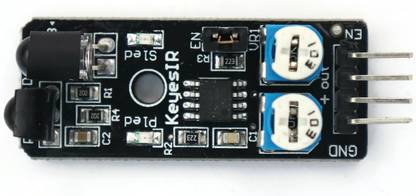

This sensor is known variously as the Keyes, KeyesIR or Keyestudio KY-032. It is the the functional equivalent of the IrBeady IR-08H, also known as the AD-032. The sensor uses a four pin connector, The pins are labeled: EN (Enable), out (Output), + (Power) and GND (Ground). There are also two potentiometers on the board and one jumper (see picture). Output signal: TTL level LOW level if obstacle detected HIGH if no obstacle detected Adjustment: two single-turn variable resistors Effective angle: ±35° Size: 28mm — 23mm Weight: 9g One of the potentiometers on the board (R6) is used to fine tune the signal to exactly 38kHz. The other (R5) adjusts the duty cycle of the signal, which controls the brightness of the IR LED. Both adjustments together effect the sensitivity or range of the device. Proper adjustment of R6 requires an oscilloscope or a frequency counter. Otherwise it can be left centered or as it came from the manufacturer. The receiver module also includes an AGC (Automatic Gain Control) that will suppress a continuous signal of any frequency, including 38kHz (see excerpt from data sheet, below). Therefore, it is absolutley necessary to use the 'EN' or 'Enable' pin for proper operation of the device. If the Enable function is used correctly, the device will achieve its maximum sensitivity. On most versions of this device, the Infra Red (IR) LED is already covered with a small piece of black shrink tubing; but I find that additional optical shielding is required. A small cardboard tube commonly used as packing material will work satisfactorily, as will a variety of other materials.
Read More
Specifications
In The Box
  • PACK OF 2
General
brand
  • Electronic Spices
Model Number
  • PACK OF 2 KY-032 4pin IR Infrared Obstacle Avoidance Sensor Module Diy Smart Car Robot KY032
Type
  • Electronic Components
ROHS Complaint
  • Yes
Material
  • Aluminium Alloy
Additional Features
Other Features
  • Detection distance: 2 ~ 40cm Working voltage: 3.3 - 5.0V DC Digital output signal 3mm screw holes for easy mounting A smooth white surface worked far better than a black or rough surface.
Dimensions
Width
  • 3 cm
Height
  • 4 cm
Weight
  • 0.2
Power Features
Battery Type
  • NA
No Of Batteries
  • NA
Battery Size
  • NA
Power Source
  • DC
Other Power Features
  • Detection distance: 2 ~ 40cm Working voltage: 3.3 - 5.0V DC Digital output signal 3mm screw holes for easy mounting A smooth white surface worked far better than a black or rough surface.
