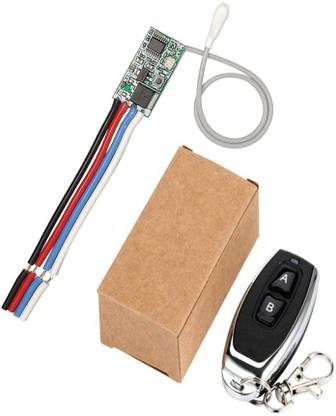

Electronic spicess 433Mhz Mini Wireless Remote Control Switch DC 3.7V - 24V Micro RF Receiver Electronic Components Electronic Hobby Kit

Price: Not Available

Currently Unavailable

Highlights

Power Source: DC
Material: Plastic
Weight: 0.1

Description

Working Voltage: DC 3.6V ~24V Maximum load: 2A Static current: 3.6 mA ~ 5.5mA Working frequency: 433 Mhz Reception sensitivity: ? -107dBm Input/Output: DC3.6V~DC24V Size: 22.5 mm x 11mm x 8mm (length × width × high) Support coding format: 1527 learning code Modulation mode: ASK (superheterodyne) Appearance size: 22.5mmx 11mm x 8mm (length × width × high) Number of stored remote controls: ? 10 Working mode: Momentary, Toggle, Latching Mode Learning style: Learning Button on the Receiver

Specifications

In The Box

1*RF REMOTE

General

brand	Electronic spicess
Model Number	433Mhz Mini Wireless Remote Control Switch DC 3.7V - 24V Micro RF Receiver
Type	Electronic Components
ROHS Complaint	No
Material	Plastic

Dimensions

Width	10 cm
Height	5 cm
Weight	0.1

Power Features

Battery Type	NA
No Of Batteries	NA
Battery Size	NA
Power Source	DC
Other Power Features	Working Voltage: DC 3.6V ~24V, Maximum load: 2A, Working frequency: 433 Mhz, Reception sensitivity: ? -107dBm
