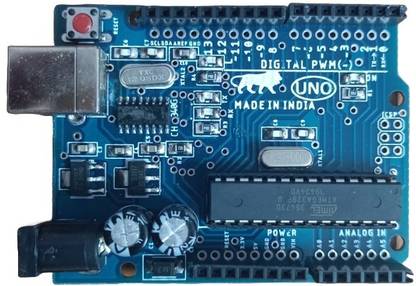

The Arduino Uno R3 with Cable is a microcontroller board that utilizes the ATmega328 (datasheet). Featuring 14 digital input/output pins (with 6 capable of serving as PWM outputs), along with 6 analog inputs, this board is equipped with a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button.
Designed for user-friendly operation, this board includes all the essential components to facilitate the microcontroller. To initiate use, simply connect it to a computer via a USB cable or power it with an AC-to-DC adapter or battery. This straightforward setup makes it easy for users to get started quickly.
Read More
Specifications
In The Box
1 x Arduino Uno R3 Development Board (Made in India)), 1 x Arduino cable
General
brand
Electronixmart
Model Number
Arduino Uno R3 Development Board with cable(Made in India)
Type
Micro Controller Board
ROHS Complaint
Yes
Material
Silicone
Additional Features
Other Features
Operating Voltage (VDC):- 5, Input Voltage(Recommended):- 7/12 V, Input Voltage (limit):- 6/20 V, Analog I/O Pins:- 6, Digital I/O Pins:- 14 (of which 6 provide PWM output), PWM Digital I/O Pins:- 6, DC Current per I/O Pin (mA):- 40, DC Current for 3.3V Pin (mA):- 50, Clock Speed:- 16 MHz, SRAM:- 2, EEPROM:- 1 KB (ATmega328), Flash Memory:- 32 KB, On Board LEDs:- On/Off, L (PIN 13), TX, RX
Dimensions
Width
5.4 cm
Height
1.2 cm
Weight
54
Power Features
Battery Type
NA
No Of Batteries
NA
Battery Size
NA
Power Source
DC
Other Power Features
NA
