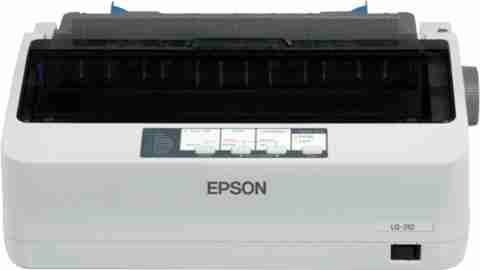

Epson - LQ-310 Single Function Impact Dot Matrix Printer

Printing Technology: Number of Pins in Head - 24 pins, Print Direction - Bi-direction with Logic Seeking, Control Code - ESC/P2 and IBM PPDS Emulation, Print Speed: High Speed Draft (10/12 cpi) - 347 / 416 cps, Draft (10/12/15 cpi) - 260 / 312 / 390 cps, Draft Condensed (17/20 cpi) - 222 / 260 cps, LQ (10/12/15 cpi) - 86 / 103 / 129 cps, LQ Condensed (17/20 cpi) - 147 / 172 cps

Print Characteristics: Character Sets - Italic Table, PC437 (US Standard Europe), PC850 (Multilingual), PC860 (Portuguese), PC861 (Icelandic), PC863 (Canadian-French), PC865 (Nordic), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC 858, ISO 8859-15, Bitmap Fonts - Epson Draft: 10, 12, 15 cpi; Epson Roman & San Serif: 10, 12, 15 cpi, Proportional; Epson Courier: 10, 12, 15 cpi; Epson Prestige: 10, 12 cpi; Epson Script, OCR-B, Orator & Orator-S: 10cpi; Epson Script C: Proporational, Barcode Fonts - EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, Postnet, Printable Columns: Pitch (10 / 12 / 15 / 17 / 20 cpi): 80 / 96 / 120 / 137 / 160 cpl, Paper Handling: Paper Path - Tractor (Rear In, Top Out), Manual Insertion (Rear In, Top Out), Paper Size: Cut Sheet (Single Sheet) - Length (100 - 364 mm), Width (100 - 257 mm), Thickness (0.065 - 0.14 mm), Cut Sheet (Multi Part) - Length (100 - 364 mm), Width (100 - 257 mm), Thickness (0.12 - 0.32 mm), Envelope (No.6) - Length (92 mm), Width (165 mm), Thickness (0.16 - 0.52 mm), Envelope (No.10) - Length (105 mm), Width (241 mm), Thickness ( 0.16 - 0.52 mm), Continuous Paper (Single Sheet an Multi Part) - Length (101.6 - 558.8 mm), Width (101.6 - 254.0 mm), Thickness (0.065 - 0.32 mm), Roll Paper - Width (216 mm), Thickness (0.07 - 0.09 mm), Paper Feeding: Standard - Friction, Push Tractor, Optional - Roll Paper Holder, Copies: Original + 3 Copies, Line Spacing: 4.23 mm or Programmable in Increments of 0.118 mm, Input Data Buffer: 128 KB, Ribbon Cartridge: Ribbon Life - Approx. 3 Million Characters (Draft 10 cpi, 48 Dots / Character), Acoustic Noise - Approx. 53 dB(A) (ISO 7779 Pattern), Reliability: Mean Print Volume Between Failure (MVBF) - Approx. 20 Million Lines (Except Print Head), Mean Time Between Failure (MTBF) - Approx. 10000 POH (25 % Duty), Print Head Life - Approx. 400 Million Strokes/Wire, Control Panel - 4 Switches and 5 LEDs, Power Consumption: 0.5 W Auto Off Mode, Utility: Epson Status Monitor 3 (Windows: 2000, XP, Vista, 7), Epson Printer Setting (Windows: 2000, XP, Vista, 7), High Printing Speeds of Upto 416 Characters Per Second at 12 CPI, Energy Star Compliant

Cable, Printer, Guide

Windows: 2000, XP, Vista, 7

Fabric Ribbon Cartridge (Black)

Epson

Laser

Single Function

LQ-310

LQ-310

Monochrome

Print

Business

Windows

USB

White

5DegC - 35DegC degree C

10 % - 80 % RH %

220 to 240 V, 50/60 Hz

0 W

22 W

USB 2.0

No

Paper, Envelopes

15.4 cm

36.2 cm

4.1 kg

27.5 cm
