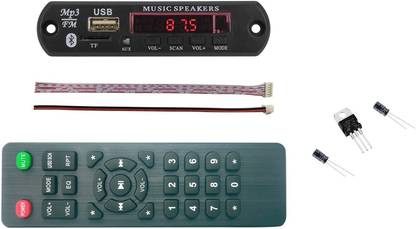

ESP Bluetooth FM USB AUX Card MP3 Stereo Audio Player Decoder Module Kit with Ultra High Quality Remote for Home Theater Car Stereo (Double Din)
Price: Not Available
Currently Unavailable
Warranty
NA
Highlights
Type: Audio
Connectivity: Bluetooth, USB, AUX
Maximum Output: 100 W
Disc Formats: USB, MP3
Description
Features: You need Amplifier Board & Speaker to use this Module. Bluetooth FM USB MP3 Audio Board with LCD Display With IR Remote Control: Yes With the LINE input (AUX) Song Number Display: Yes Support: Bluetooth/ FM/ USB/ MP3/ AUX/ SD Frequency Range: 87.5-108MHZ Led Seven Seg Display Support: 32-320 kbps MP3 Songs Support: FAT 32, FAT 16 File System External Antenna Connection for FM PLEASE NOTE THAT DESIGN, SHAPE & COLOR MAY VARY FROM THE PICTURE SHOWN ABOVE. This unit is used to feed a Amplifier, from Amplifier you can drive Speaker. Do not connect Speakers Directly to this UNIT. Power & Output Specification: Input Supply: 5V (You can use regulator IC LM7805 to bring the supply to 5V) S/N: 65dB Distortion: 0.2% Output: 550 mV Separation: 45 dB Auto-Search Station: 22-28 dB Frequency Response: (90HZ~15KHZ) Dimensions: Length: 41mm Width: 32mm
Read More
Specifications
In The Box
Bluetooth FM USB AUX Card MP3 Stereo Audio Player Decoder Module Kit with Ultra High Quality Remote for Home Theater, Ultra High Quality Remote for Home Theater
General
Brand
ESP
Model Number
Bluetooth FM USB AUX Card MP3 Stereo Audio Player Decoder Module Kit with Ultra High Quality Remote for Home Theater
