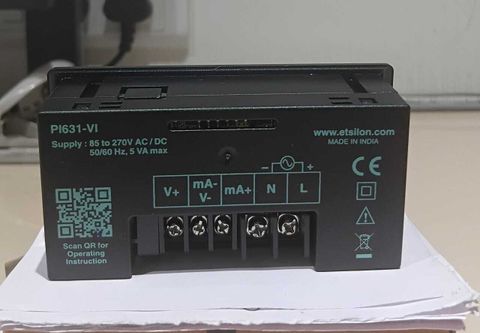

ETSILON PI631-VI Test Indicator
Buy at ₹1,079
Apply offers for maximum savings
Apply offers for maximum savings!
Product highlights
Brand
ETSILON
Model Number
PI631-VI
Type
Test Indicator
Measurement Accuracy
Indication accuracy: ±0.5% of F.S. ±1 digit (F.S.=Full scale)
Measurement Range
Inputs Voltage: 0-10V DC; Current: 0-20mA & 4-20mA DC
Material
Plastic
Color
GRAY
Other Features
Humidity (Non-condensing): 95% RH
All details
Features, description and more
Specifications
Description
Warranty
Manufacturer info
Show More
General
Brand
ETSILON
Model Number
PI631-VI
Type
Test Indicator
Measurement Accuracy
Indication accuracy: ±0.5% of F.S. ±1 digit (F.S.=Full scale)
Measurement Range
Inputs Voltage: 0-10V DC; Current: 0-20mA & 4-20mA DC
Material
Plastic
Color
GRAY
Other Features
Humidity (Non-condensing): 95% RH
Net Quantity
1
Dimensions
Length
48 mm
Width
96 mm
Height
30 mm
Weight
0.077 kg
See more
0.56" 4 digits, 7 segment LED single display Inputs:Voltage: 0-10V DC; Current: 0-20mA & 4-20mA DC Input filter (FTC)- 0.2 to 9.9 sec Indication accuracy: ±0.5% of F.S. ±1 digit (F.S.=Full scale) Resoulation: Decimal point position selectable: 1/0.1/0.01/0.001 Supply voltage:- 85 to 270V AC/DC, 50/60 Hz, , 5VA max Temperature: Operating: 0 °C to 50 °C (32 °F to 122 °F); , Storage: -20 °C to 75 °C (-4 °F to 167 °F)
See more
Warranty Summary
1 Year Accuracy Warranty
Covered in Warranty
1 Year Accuracy Warranty
Not Covered in Warranty
1 Year Accuracy Warranty
Warranty Service Type
1 Year Accuracy Warranty
Generic Name
Measurement Indicator
Country of Origin
India
Name and address of the Manufacturer
MADE IN INDIA
Name and address of the Packer
METER WORLD
