Euro Controls EDT-TMP Temperature Controller -25 to 130° C with Sensor Heating & Cooling Multipurpose Controller
Euro Controls EDT-TMP Temperature Controller -25 to 130° C with S...more
Buy at ₹1,386
Apply offers for maximum savings
Buy at ₹1,386
Bank offers
Bank offers
₹73 off
All details
Features, description and more
Specifications
Description
Warranty
Manufacturer info
Show More
In the box
Sales Package

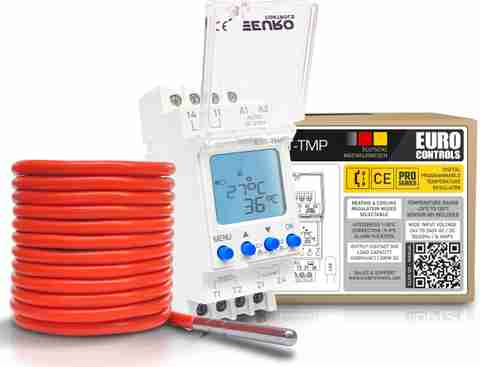

1 Unit Temperature Controller, 2.5 meter Sillicon Cable RT801 Temperature Sensor, User Manual
General
Brand
Euro Controls
Model Number
EDT-TMP Temperature Controller -25 to 130° C with Sensor Heating & Cooling
Type
Wired
Power Source
AC / DC 24~240 v
Material
ABS
Color
White
Bluetooth Enabled
No
Wifi Enabled
No
Compatible Devices
RT801 temperature sensor, External Alarm / Buzzer
Range
2.4
Key Features
German Excellence - Precision Electronics provide great Accuracy, Heating & Cooling Control Temperature Range : -25 to 130° C, Industrial Grade Silicon cable with Stainless Steel Sensor, Backlit LCD Display & Controller, Automatic Reset & External Alarm Connection Port, Works with AC or DC 24V to 240V
Additional Features
Other Features
ABS Flame resistant body, Silicon Cable Sensor, Stainless steel sensor, Din Rail Mount 2 module, Fits into Distribution Box
Dimensions
Width
36 mm
Height
65 inch
Depth
90 inch
See more

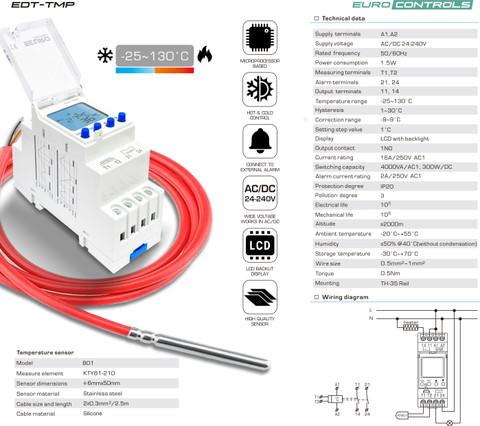

German Excellence .Euro Controls presents to you EDT-TMP Brand new Industrial / Domestic Grade Temperature Controller . EDT-TMP is Din rail mounting compact in size & fits into any standard distribution box . The device is made with precision electronics & is microprocessor controlled . Has two selectable modes of operation Heating or cooling . Bright Backlit LCD Display .Temperature Measurement Range -25° to 130° C .The device auto resets on trigger points & Also can connect to an External Alarm .Works with AC & DC power supply with a wide operating voltage of 24 to 240 V AC/DC . Hysteresis range of 1~30° C .Current Rating 16A / 250v AC1 .Load Capacity : 4000VA/ AC1 & 300W/DC . Industrial Grade Silicon Cable & RT801 sensor is provided along with the package .
See more
Warranty Summary
Repair / Replacement for Manufacturing Defects . Any Wrong Connection , physical damage voids the warranty
Covered in Warranty
Manufacturing Defects only
Not Covered in Warranty
Short Circuit , Burning ,Wrong Connection , physical damage voids the warranty
Warranty Service Type
Repair / Replacement
Generic Name
Multipurpose Controllers
Country of Origin
Germany
Name and address of the Importer
Alankar Electricals Chickpet Bangalore India
