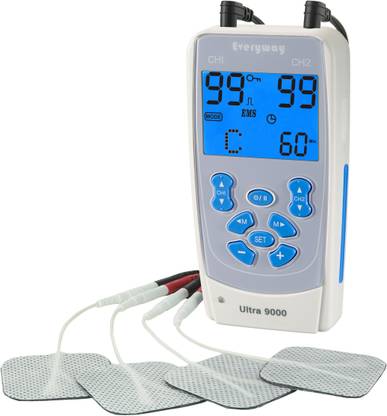

Everyway Ultra 9000 5in1 Multi Function Combo Stimulator TENS/ EMS/ IF/ Pelvic stimulator/ Facial Stimulator Electrotherapy Device (Ultra 9000)

Price: Not Available

Currently Unavailable

Warranty

1 Year

Highlights

TENS/ EMS/ IF/ Pelvic stimulator/ Facial Stimulator Electrotherapy
Battery Operated, AC Adapter
Designed For: Physiotherapy Treatment, Pain Relief, Muscle Training, Facial Palsy, Incontinence Treatment
2 Channels

Description

Ultra 9000 Series is a combination unit of TENS, EMS, IF, Pelvic and Facial stimulator intended for use of pain treatment, muscle training, facial palsy & incontinence treatment. The operation of the device is controlled by press buttons. Both adjustable modes and preset programs are available on the unit. The unit is ideal for clinical and daily homecare.

Specifications

General

Brand	Everyway
Sales Package	Stimulator x 1 pcs, Reusable Self Adhesive Electrodes x 1Set, 9V Battery x 1 pcs, AC Power Adapter x 1 pcs, Lead Wires x 2 pcs, Instruction Manual, Anal Probe x 1 pcs, Vaginal Probe x 1pcs, Metal Facial Electrodes x 1 pcs, TENS Tester x 1 pcs
Adjustable Timer	Yes
Therapy Modes	TENS: B, N, M,S1, S2, P(P01-P12) 5 adjustable modes, 12 presets, EMS: C,S,A,P(P01-P12), 3 adjustable modes, 12 presets, IF: C, 1/1,6/6,10/10,SW1,SW2,R,P(P01-P06), 7 adjustable modes,6 presets, Pelvic: P(P01-06) 6 presets, Facial: P(P01-06) 6 presets
Display Type	LCD
Number of Pre-set Profiles	42
Number of Programmable Profiles	15
Wave Form	TENS/EMS - Asymmetrical Bi-phasic Square Pulse, IF - Symmetrical balanced Sine wave, Facial & Pelvic - Asymmetrical Bi-phasic Square Pulse
Pulse Amplitude	TENS/EMS - Adjustable, 0-100mA peak into 500 ohm load each channel, 99 steps of intensity control, IF - Adjustable, 0-60mA peak into 500 ohm load each channel, 60 steps of intensity control., Facial/Pelvic - Adjustable, 0-60mA peak (Load: 500ohm), 60 steps of intensity control
Other TENS Unit Features	TENS/EMS - Pulse Amplitude: Adjustable, 0-100mA peak into 500 ohm load each channel, 99 steps of intensity control, TENS/EMS - Pulse Rate: Adjustable, 2-150 Hz, 1Hz/step, TENS/EMS - Pulse Width: Adjustable, 50-400 microseconds, 10 µs/step, TENS/EMS - On Time: Adjustable, 2-90 seconds, 1 sec./step, TENS/EMS - Off Time: Adjustable 0-90 seconds, 1 sec./step, TENS/EMS - Ramp Time: Adjustable, 1-8 seconds, 1 sec./step, TENS/EMS - Timer: Adjustable, 1-60 minutes and C(Continuous), TENS/EMS -
Other Interferential Therapy Features	IFT - Carrier Frequency: 4000Hz fixed (CH1), IFT - Modulating Frequency: 4004-4160Hz, Adjustable (CH2), IFT Frequency Modes - Constant Mode: Constant stimulation, 4-160bps, Adjustable Frequency Shift: Seven modes C, 1/1 abrupt shift, 6/6 abrupt shift, 6/6 ramped, 10/10 abrupt shift, 10/10 ramped & R(Repeat) bps can be adjusted, IFT - Auto Sweep: 4-45 bps, 80-145 bps & 4-SET bps, IFT - Sweep Time: 15 seconds, IFT - Frequency Shift Percent: Frequency shifts from 30% below the set frequency to 60% above and then return to 30% below the set frequency., IFT - Output Configuration: Quad polar (4 electrodes), IFT - Interference Pulse Freq: 4-160 bps, Adjustable, 4 bps/step, IFT - Timer: Adjustable, 1-30 minutes
Other Features	Facial & Pelvic - Pulse Amplitude: Adjustable, 0-60mA peak (Load: 500ohm), 60 steps of intensity control, Facial & Pelvic - Programs: 6 Facial Stimulation Preset Programs, 6 Pelvic Stimulation Preset Programs The programs are not adjustable. Timer of the above two modes are fixed.
Type	TENS/ EMS/ IF/ Pelvic stimulator/ Facial Stimulator
Designed For	Physiotherapy Treatment, Pain Relief, Muscle Training, Facial Palsy, Incontinence Treatment
Model Name	Ultra 9000 5in1 Multi Function Combo Stimulator
Model Number	Ultra 9000
Number of Channels	2
Power Source	Battery Operated, AC Adapter

Dimensions

Width	69 mm
Height	32 mm
Depth	135 mm
Weight	215 g

Additional Features

Key Features

Five Modalities for Pain Relief, Muscle Training, Facial Palsy & Incontinence Treatment In one Unit, Large Backlit LCD, Full Digital Press Buttons Control, Treatment Time Countdown, Adjustable Beep Sound, Lock Facility, Quick Selection of Modalities and Modes, Patient Compliance Meter, Precise Intensity Control in 60 or 99 steps, 15 Adjustable Modes and 42 Preset Programs

Warranty

Warranty Summary	1 Year
Warranty Service Type	1 Year Replacement Warranty
Covered in Warranty	Manufacturer's Part Warranty
Not Covered in Warranty	Warranty Does Not Cover Physical Damage to the Stimulator & Accessories other than the Stimulator
