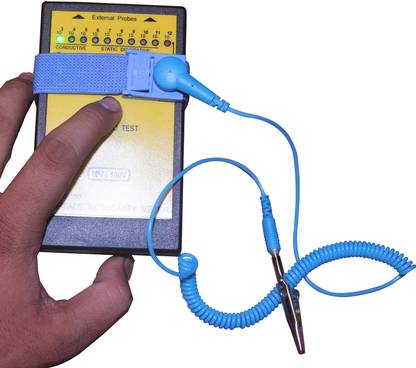

Exochos Static Technologies EST-AWS01 Cord Anti-Static Wrist Strap

Exochos Static Technologies – Anti-static Wrist Strap Technical Datasheet Directions of Use: 1. Wear Anti-static wrist strap on any of wrist and ensure contact to the body 2. Check Wrist strap with Wrist strap tester before entering Electrostatic Protected Area’s (EPA) 3. Ensure Wrist Strap is connected to the ground Technical Specifications: 1. Wrist Band: Elastic adjustable and with conductive filament (100% Washable) 2. Coiled Cord: Total Length - 1.8m /Outer Diameter: 2.15 +/-0.1 mm 3. Resistance: 1 Meg-Ohm/0.25 watt 4. Female Snap: 10mm / 4mm Testing Parameters: 1. Conductivity Test: Connect the both ends of the cable to the multi-meter. Reading shown as below: Test No. Resistance (Meg-Ohm) 1 0.972 2 0.968 3 1.002 4 0.970 5 1.003 Note: The tests have been performed 50 times Required Specifications: 1 Meg-Ohm 2. Stretch Test: a. Speed 30 times per minute b. 10 000 times stretching c. Stretch length: 5 times longer than test piece Test No. Close coil length Before After 1 140mm 145mm 2 142mm 145mm 3 140mm 143mm 4 143mm 147mm Note: The tests have been performed 50 times 3. Button Rotate Test: a. Button rotates 360 degrees on wrist strap b. Direction clock wise anti-clock wise Test No. Rotate arc 360 degree 1 Pass 2 Pass 3 Pass 4 Pass 5 Pass Note: The tests have been performed 50 times
