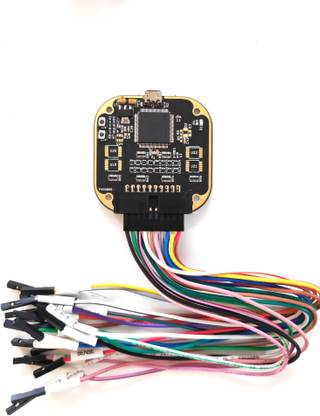

EXPLIoT BUS AUDITOR Multilayer PCB

BUS Auditor is a compact multi-protocol tool used for scanning and identifying debugging and communication interfaces exposed on any hardware board. It can brute force several hardware protocols including JTAG, arm SWD, UART, and I2C. The device has 16 channels, every channel can be used to interface with a pin-out on the target board. The inbuilt USB port can be used for interface with EXPLIoT framework (Internet of Things Exploitation framework - https://gitlab.com/expliot_framework/expliot) running on a PC. EXPLIoT framework provides plugins for JTAG, arm SWD, UART, and I2C pin scan.
