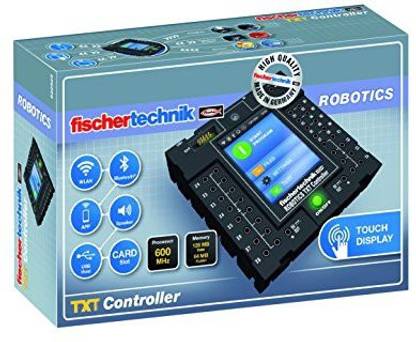

Fischertechnik Robotics Txt Controller  (Multicolor)

Fischertechnik Robotics TXT Controller New, state-of-the-art control unit Wi-Fi, Bluetooth, Integrated Loud Speaker, Touch Display and more! Includes USB host Interface and Micro SD Card Slot High quality construction Made in Germany The compact ROBOTICS TXT Controller (90x90x25mm) can be controlled easily with the color 2.4" touch display. The combined Bluetooth/WiFi RF module provides the perfect, wireless interface for numerous applications. The numerous interfaces also include a USB host port for USB sticks and other components such as the fi schertechnik USB camera. The integrated Micro SD card slot allows expansion of the memory capacity. Controllers can easily be coupled. REQUIRES Accu Set or Power Set. Processor: Dual core, main processor ARM Cortex A8 (32bit/500mHz) + Cortex M3 Memory capacity: 128 MB DDR3 RAM, 64 MB Flash Memory expansion Micro SD card slot Display: Color 2.4" touch display (320x240 pixels) 8 Universal inputs: Digital/analog 0-9VDC, analog 0-5 k? 4 high speed numerical inputs: Digital, frequency up to 1kHz 4 Motor outputs 9V/250mA (max: 800 mA): speed infinity controllable, short-circuit proof, alternative 8 single outputs for components such as lights, etc. Combined Bluetooth/Wi-Fi RF module: BT 2.1 EDR+ 4.0, WLAN 802.11 b/g/n Infrared receiver diode: for fi fischertechnik Control Set transmitter USB 2.0 Client: Mini USB port for connection to PC USB Host interface: USB A port for fi fischertechnik USB camera, USB sticks, etc. Camera interface: over USB Host, Linux camera driver integrated into operating system 10-pin male connector for additional inputs and outputs as well as I2C interface Integrated loud speaker Integrated real time clock with exchangeable buffer battery: for capturing measured values within a defy ned period of time Linux-based open source operating system Programming possible with ROBO Pro, C-Compiler, PC-Library and many others. Link to smartphones/tablet PC's via Bluetooth or WLAN, allowing them to be used as terminals for the
