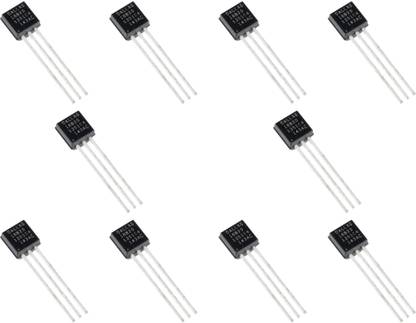

Flyrobo (10 pc) DS18B20 Temperature Sensor - - Electronic Components Electronic Hobby Kit

The DS18B20 Digital Thermometer provides 12-bit centigrade temperature measurements and has an alarm function with nonvolatile user-programmable upper and lower trigger points. The DS18B20 communicates over a 1-wire bus that by definition requires only one data line (and ground) for communication with a central microprocessor/microcontroller. It has an operating temperature range of –55°C to +125°C and is accurate to ±0.5°C over the range of –10°C to +85°C. Specifications: Calibrated directly in ° Celsius (Centigrade) Unique 1-wire interface requires only one port pin for communication Each device has a unique 64-bit serial e stored in an onboard ROM Multi-drop capability simplifies distributed temperature sensing applications Requires no external components Can be powered from the data line. The power supply range is 3.0V to 5.5V Measures temperatures from –55°C to +125°C (–67°F to +257°F) ±0.5°C accuracy from –10°C to +85°C 12-bit thermometer resolution Converts temperature in 750 ms (max.) Applications: Thermostatic controls Industrial systems Consumer products Thermometers Thermally sensitive system Package includes: 1 x DS18B20Temperature Sensor
