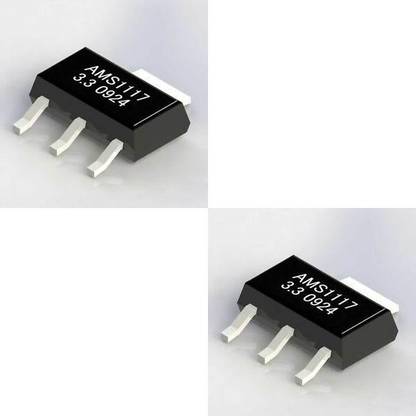

The AMS1117 series of adjustable and fixed voltage regulators are designed to provide up to 1A output current and to operate down to 1V input-to-output differential. The dropout voltage of the device is maximum 1.3V, decreasing at lower load currents. On-chip trimming adjusts the reference voltage to 1.5%. Current limit is set to minimize the stress under overload conditions on both the regulator and power source circuitry. Features: Output Voltage: 3.3V Output Current of 1A Operates Down to 1V Dropout Line Regulation: 0.2% Max. Load Regulation: 0.4% Max. SOT-223 package Application: High-Efficiency Linear Regulators Post Regulators for Switching Supplies 5V to 3.3V Linear Regulator Battery Chargers Active SCSI Terminators Power Management for Notebook Battery Powered Instrumentation Applications: for Positive voltage regulations Variable power supply Current limiting circuits Reverse polarity circuits Commonly used in Desktop PC, DVD and other consumer products in motor control circuits So if you are looking for SMD component voltage regulator then this IC might be the right choice for you. Datasheet: Download Package Content: 1 x AMS1117 IC 3.3V, 1A LDO Voltage Regulator - SOT-223
Read More
Specifications
In The Box
(2 pc) AMS1117 3.3V, 1A LDO Voltage Regulator - SOT-223
