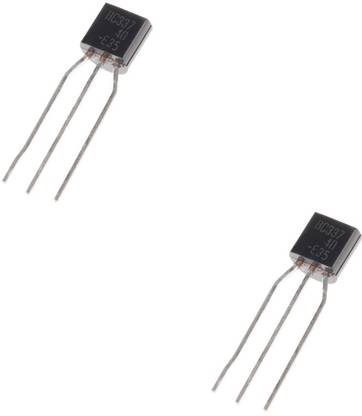

Flyrobo (2 pc) Transistor BC337 | NPN Transistor - - Electronic Components Electronic Hobby Kit

The BC337 is an NPN transistor with a maximum gain of 630, commonly used in low power audio applications. It can also switch loads up to 45V and 800mA hence also used as general purpose transistor. Pin Configuration : Pin Number Pin Name Description 1 Collector Current flows in through collector, normally connected to load 2 Base Controls the biasing of the transistor, to turn ON or OFF the transistor 3 Emitter Current Drains out through emitter, normally connected to ground Features: General Purpose NPN Amplifier Transistor Current Gain (hFE), 100 to 630 Continuous Collector current (IC) is 800mA Collector-Emitter voltage (VCEO) is 45 V Collector-Base voltage (VCB0) is 50V Emitter-Base Voltage (VBE0) is 5V Transition Frequency 100MHz Available in To-92 Package Package Content: 1 x BC337 Transistor
