FPC Multi Voltage Dual Power Supply Rail For Audio Amplifiers Power Supply Electronic Hobby Kit

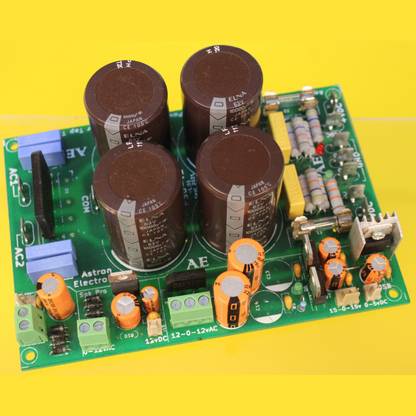

This module is a complete power supply solution for building professional amplifiers. It is built on reasonable quality glass epoxy PCB. It comes in the following specifications. 1. Up to 50V - 0 - 50V {35V - 0 - 35V Secondary} For Amplifier Board 2. Regulated 15V - 0 - 15V For Pre-Amplifier / Tone Control 3. Regulated 12V For Speaker Protection / VU Board etc. 4. Regulated 5V For USB and other Digital Devices 5. Un-Regulated 12V {16V Open Circuit} for Chassis Fan This power supply module comes with high quality components and reputed ELNA capacitors. (four 10000uf 63V ELNA capacitors) Note1: Maximum Transformer Secondary Voltage - 35V - 0 35V. Note2: Maximum Transformer Wattage - 500VA Proper connectors have been used so that the board can be used without any soldering. Contents: 1. Power Supply Board with Four 10000Uf 63V ELNA Capacitors, Connectors and two 6A Fuse 2. Three 2pin JST XH connectors with wire. 3. One 3pin JST XH connector with wire. 4. Connection details printout. WARNING Electricity is dangerous and can cause personal injury or DEATH as well as other property loss or damage if not used or constructed properly. If you have any doubts what so ever about performing do-it-yourself electrical/electronics work, PLEASE do the smart thing and hire a QUALIFIED SPECIALIST to perform the work for you.
