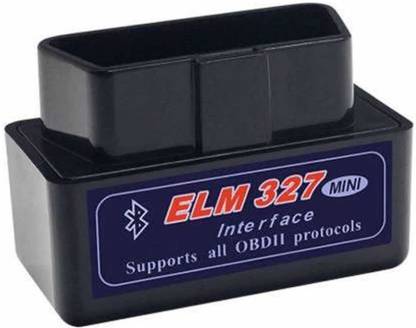

    FStyler Super Mini Elm327 Bluetooth OBD2 V2.1 ELM327 V2.1 OBD 2 Car Diagnostic-Tool Scanner Elm-327 OBDII Adapter Auto Diagnostic Tool OBD Reader

    FStyler Super Mini Elm327 Bluetooth OBD2 V2.1 ELM327 V2.1 OBD 2 Car Diagnostic-Tool Scanner Elm-327 OBDII Adapter Auto Diagnostic Tool OBD Reader

    Price: Not Available
    Currently Unavailable
    Highlights
    • OBD Reader
    • Powered By: Vehicle Powered
    • Compatible With: Mobile, Tablet
    • For Android
    • Wireless
    Specifications
    In The Box
    Sales Package
    • ELM327 Bluetooth V2.1 / V1.5 OBD2 Car Diagnostic Tool ELM 327 Bluetooth 4.0 For Android/Symbian OBDII Protocol Auto Diagnostic Scanner Tool; OBDII Reader
    General
    Brand
    • FStyler
    Model Number
    • Super Mini Elm327 Bluetooth OBD2 V2.1 ELM327 V2.1 OBD 2 Car Diagnostic-Tool Scanner Elm-327 OBDII Adapter Auto Diagnostic Tool
    Type
    • OBD Reader
    Wireless
    • Yes
    Compatible Devices
    • Mobile, Tablet
    Compatible OS
    • Android
    Powered By
    • Vehicle Powered
    Vehicle Brand
    • Universal
    Vehicle Model Name
    • Universal
    Vehicle Model Year
    • Universal
    Operations Supported
    • Display current sensor data, including: Engine RPM, Calculated Load Value, Coolant Temperature, Fuel System Status, Vehicle Speed, Short Term Fuel Trim, Long Term Fuel Trim, Intake Manifold Pressure, Timing Advance, Intake Air Temperature, Air Flow Rate, Absolute Throttle Position, Oxygen sensor voltages/associated short term fuel trims, Fuel System status, Fuel Pressure and Many others... via Mobile App
    Protocols Supported
    • Multi-Protocol Support: 1. SAE J1850 PWM (41.6Kbaud) | 2. SAE J1850 VPW (10.4Kbaud) | 3. ISO9141-2(5 baud init, 10.4Kbaud) | 4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud) | 5. ISO14230-4 KWP (fast init, 10.4 Kbaud) | 6. ISO15765-4 CAN (11bit ID, 500 Kbaud) | 7. ISO15765-4 CAN (29bit ID, 500 Kbaud) | 8. ISO15765-4 CAN (11bit ID, 250 Kbaud) | 9. ISO15765-4 CAN (29bit ID, 250 Kbaud) | A.SAE J1939 CAN (29bit ID, 250*Kbaud) | B.USER1 CAN (11*bit ID, 125*Kbaud) | C.USER2 CAN (11*bit ID, 50*kbaud) *default settings (user adjustable)
    Voltage Rating
    • 12 V
    Bluetooth Compatible
    • Yes
    Material
    • Plastic
    Display Features
    Languages Supported
    • English
    Power Features
    Power Consumption
    • 9 W
    Dimensional Features
    Weight
    • 100 g
