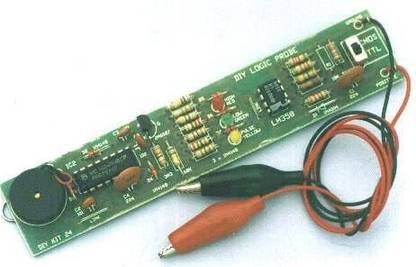

Generic Logic Probe (Kit)  (Multicolor)

Logic Probe (Kit) This is the most important piece of equipment for testing and measuring digital equipment. | It is usually used in fault finding and testing but can also assist in design work and in finding out how digital equipment works. | Switch for either TTL or CMOS. Modern design using a PUT. | Includes detection circuit for very fast pulses. Gives visual (3 LED's) and audio (piezo buzzer) response. | Skill Level : Kit - Basic Soldering Required This is the most important piece of equipment for testing and measuring digital equipment. It is usually used in fault finding and testing but can also assist in design work and in finding out how digital equipment works. Switch for either TTL or CMOS. Modern design using a PUT. Includes detection circuit for very fast pulses. Gives visual (3 LED's) and audio (piezo buzzer) response. (K24) Download documentation here: http://www.electronics123.net/amazon/datasheet/k24.pdf
