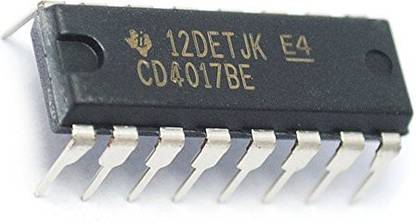

Generic Texas Instruments Cd4017 Cd4017Be Cmos Decade Counter With 10 Decoded Outputs Dip16 10 Pack  (Multicolor)

Texas Instruments CD4017 CD4017BE CMOS Decade Counter with 10 Decoded Outputs DIP16 10 Pack Fully static operation | Medium speed operation 10 MHz (typ.) at VDD = 10 V | Standardized, symmetrical output characteristics | 100% tested for quiescent current at 20 V | 5-V, 10-V, and 15-V parametric ratings CD4017B 5-stage Johnson counters having 10 decoded output. Inputs include a CLOCK, a RESET, and a CLOCK INHIBIT signal. Schmitt trigger action in the CLOCK input circuit provides pulse shaping that allows unlimited clock input pulse rise and fall times.These counters are advanced one count at the positive clock signal transition if the CLOCK INHIBIT signal is low. Counter advancement via the clock line is inhibited when the CLOCK INHIBIT siganl is high. A high RESET signal clears the counter to its zero count. Use of the Johnson counter configuration permits high-speed operation, 2-input decode-gating and spike-free decoded outputs. Anti-lock gating is provided, thus assuring proper counting sequence. The decoded output are normally low and go high only at their respective decoded time slot. Each decoded output remains high for one full clock cycle. A CARRY-OUT signal completes on cycle every 10 clock input cycles in the CD4017B and is used to ripple-clock the succeeding device in a multi-device counting chain.
