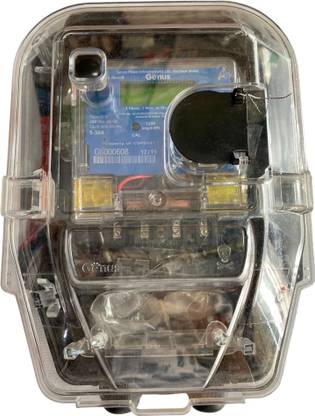

Genus 1 Phase Electrical LCD Display Sub Meter With Safety Box 2 Wire 5-30A 240V 50HZ Metal Electrical Box

Genus 1 phase Sub Meter Tamper proof, Static Electricity meter conforming to IEC-62053-21/23, IEC-62054 and IS 13779. Made for MTBF 200 years. 24 bit S ADCs for accurate measurement. Measures current in both the elements (Phase and Neutral), makes meter tamper proof. High Energy resolution(4 decimal), reduces energy loss due to power outage. Extra ordinary Anti tamper features Current reversal, Earth tampers Phase/Neutral cut, Neutral Loop, Pure/Chopped DC injection in Phase/Neural circuit. Phase/Neutral cut tamper. Low Starting Current- 1AAccuracy -2. 5A to 60A. Extended immunity to HF, Tested up to 5W RF power Frequency range ( 30-370 MHz). Measures Active energy, Apparent energy, Maximum Demand kW, Maximum demand kVA, True RMS Voltage, True RMS Phase Current, True RMS Neutral Current, Instantaneous signed Power Factor, Instantaneous Frequency, Instantaneous Load. Time of use metering, Up to 6 configurable TOU slots and 6 tariffs, 3 types of days, 4 seasons, daylight saving in accordance with IEC 62054. Optical port Hardware compatible to IEC 62056 -21, With very high BAUD rate9. 6Kbpsresulting in a quick downloading of data. TOU function is supported by EPSON's factory calibrated RTC with an accuracy of up to 3 minutes per year. RTC developed on GENUS has a 32. 768KHz internal crystal with a stability of better than ±5 PPM. Active Pulse outputs and Visual tamper indications. Store 35 days Load profile with kWh, average voltage and average current, for the integration period for integration period of 30 minutes. 6 month porting Software. Good History of billing parameters.
