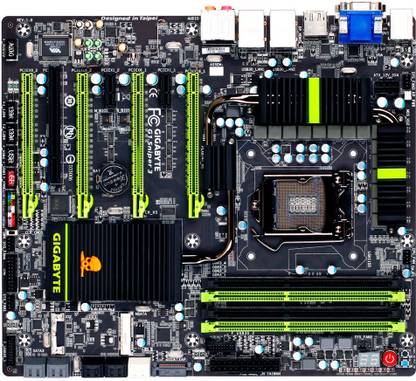

    GIGABYTE G1.Sniper 3 LGA 1155Socket EATX Intel Z77 Chipset DDR3 Motherboard

    GIGABYTE G1.Sniper 3 LGA 1155Socket EATX Intel Z77 Chipset DDR3 Motherboard

    Price: Not Available
    Currently Unavailable
    Warranty
    3 Year Domestic Warranty
    Highlights
    • Intel Z77
    • Data Rate DDR3
    • Maximum RAM Capacity 32
    • Form Factor: EATX
    Specifications
    In The Box
    Sales Package
    • Motherboard, SATA Cables, SLI Bridge, USB Bracket, Wi-Fi Antennae, Rear I/O Panel Shield, Supporting CD Software
    General
    Brand
    • GIGABYTE
    Model ID
    • G1.Sniper 3
    Essentials
    Form Factor
    • EATX
    Socket Type
    • LGA 1155
    Compatible Processors
    • Intel 3rd Generation Core i3 Processor, Intel 2nd Generation Core i7 Processor, Intel 2nd Generation Core i5 Processor, Intel 3rd Generation Core i5 Processor, Intel Pentium Processor, Intel Xeon Processor, Intel 3rd Generation Core i7 Processor, Intel 2nd Generation Core i3 Processor, Intel Celeron Processor
    Chipset
    • Intel Z77
    Chipset Manufacturer
    • Intel
    Memory
    Number of Memory Slots
    • 4 Slots
    Memory Configuration
    • 32 DDR3 Dual Channel DIMM
    Memory Frequency
    • 1066 MHz, 2666(O.C) MHz, 1600 MHz, 1333 MHz
    ECC Support
    • Non-ECC
    Storage
    SATA 3 Gb/s
    • Intel Z77 Chipset
    SATA 6 Gb/s
    • Intel Z77 Chipset, Marvell 88SE9187 Chip
    RAID Controller
    • Intel Z77 Chipset, Marvell 88SE9187 Chip
    RAID Configurations
    • 0, 1, 5, 10
    Graphics
    Integrated Graphics card
    • Yes
    Multi GPU Support
    • Yes, 4-way AMD CrossFireX, 3-way AMD CrossFireX, 2-way AMD CrossFireX, NVIDIA SLI Technology
    Audio
    Audio Codec
    • Creative CA0132 Chip
    Audio Features
    • High Definition Audio, Support for Sound Blaster Recon3Di
    Connectivity
    Ethernet Controller
    • Intel GbE, Qualcomm Atheros Killer E2200
    Ethernet Features
    • 10/100/1000 Mbit
    IEEE 1394a FireWire Controller
    • VIA VT6308
    Number of FireWire Ports
    • 2
    Expansion Slots
    PCI Slots
    • 1
    PCIe x1 Slots, Generation
    • 2
    Internal I/o Headers
    SATA 3 Gb/s Headers
    • 4
    SATA 6 Gb/s Headers
    • 6
    USB 2.0 Headers
    • 2
    USB 3.0 Headers
    • 2
    ATX Power Connectors
    • 1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
    Fan Headers
    • 1 (Processor Fan Headers), 4 (System Fan Headers)
    Front Panel Headers
    • 2
    Other Connectors
    • 1 x Clear CMOS Jumper, 1 x Reset Button, Voltage Measurement Points, 1 x Clear CMOS Button, 1 x DisplayPort, 1 x DVI-D Port, 1 x PCIe Power Connector, 1 x mSATA Connector, 1 x Optical S/PDIF Out Connector, 1 x Power Button, 1 x BIOS Switch, 1 x Trusted Platform Module (TPM) Header
    Back Panel Ports
    USB 3.0 Ports, Controller
    • 6
    HDMI Ports
    • 1
    VGA/D Sub Ports
    • 1
    Audio I/O Channels
    • 5
    RJ-45 Ethernet Jacks
    • 2
    PS/2
    • 1
    General Features
    Hardware Monitoring
    • System Voltage Detection, CPU / System Temperature Detection, CPU / System Fan Speed Detection, CPU / System Fan Speed Control, CPU Overheating Warning, CPU / System Fan Fail Warning
    Bundled Software
    • Norton Internet Security (OEM version), Intel Rapid Start Technology, Intel Smart Connect Technology, Intel Smart Response Technology, LucidLogix Virtu MVP
    OS Support
    • Windows: 7, 8
    BIOS
    • 2 x 64 Mbit Flash, Use of Licensed AMI EFI BIOS, Support for DualBIOS, PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
    Features
    • Onboard Creative Sound Core3D Quad-core Audio Processor, Onboard OC Features, Switchable Graphics, Locked and Loaded Heatpipe Design, iTE I/O Controller Chip, Nichicon High-end Audio Capacitors
    Advanced Technologies
    • UEFI DualBIOS Technology, Intel Quick Sync Video, Intel Smart Connect Technology, Intel Rapid Start Technology, Lucid Universal MVP Support, Intel Quick Sync 2.0, DirectX 11 Support
    Advanced Features
    • Support for BIOS, Support for Q-Flash, Support for Xpress Install, Support for Xpress Recovery2, Support for EasyTune, Support for eXtreme Hard Drive (X.H.D), Support for Auto Green, Support for ON/OFF Charge, Support for Q-Share, Support for 3D Power, Support for EZ Setup
    Limitations
    • Due to Windows 32-bit Operating System Limitation When More than 4 GB of Physical Memory is Installed the Actual Memory Size Displayed will be Less than 4 GB, The DVI-D Port does not Support D-Sub Connection by Adapter, The SATA2 5 Connector will Become Unavailable when the mSATA Connector is Installed with a Solid State Drive
    Dimensions
    Dimensions
    • 264 x 305 mm
    Warranty
    Domestic Term
    • 3 Years GIGABYTE India Warranty and Free Transit Insurance.
    Warranty Summary
    • 3 Year Domestic Warranty
    Covered in Warranty
    • Manufacturing Defects are Covered
    Not Covered in Warranty
    • Forceful Tampering, Burnt, Mishandling and Physical Damage
    Warranty Service Type
    • Carry In
