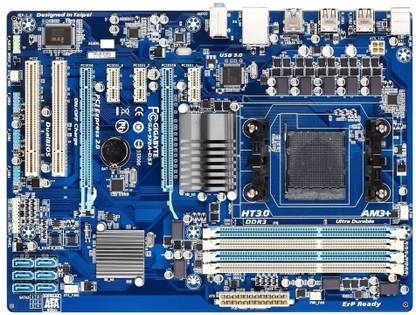

    GIGABYTE GA-970A-DS3 AM3+Socket ATX AMD 970 Chipset DDR3 Motherboard

    GIGABYTE GA-970A-DS3 AM3+Socket ATX AMD 970 Chipset DDR3 Motherboard

    Price: Not Available
    Currently Unavailable
    Warranty
    3 Year Domestic Warranty
    Highlights
    • AMD 970
    • Data Rate DDR3
    • Maximum RAM Capacity 32
    • Form Factor: ATX
    Specifications
    In The Box
    Sales Package
    • Motherboard, SATA Cables, Rear I/O Panel Shield and Supporting CD Software
    General
    Brand
    • GIGABYTE
    Model ID
    • GA-970A-DS3
    Essentials
    Form Factor
    • ATX
    Socket Type
    • AM3+
    Compatible Processors
    • AM3+ FX processors
    Chipset
    • AMD 970, SB950
    Chipset Manufacturer
    • AMD
    Memory
    Number of Memory Slots
    • 4 Slots
    Memory Configuration
    • 32 DDR3 Dual Channel DIMM
    Memory Frequency
    • 1866 MHz, 1066 MHz, 2000(O.C.) MHz, 1600 MHz, 1333 MHz
    Storage
    SATA 6 Gb/s
    • AMD SB950
    RAID Controller
    • AMD SB950
    RAID Configurations
    • 0, 1, 5, 10, JBOD
    Graphics
    Multi GPU Support
    • Yes, AMD CrossFireX
    Audio
    Audio Codec
    • Realtek HD
    Audio Features
    • High Definition Audio
    Connectivity
    Ethernet Controller
    • Realtek GbE
    Ethernet Features
    • 10/100/1000 Mbit
    Expansion Slots
    PCI Slots
    • 2
    PCIe x1 Slots, Generation
    • 2, 3
    PCIe x16 Slots, Generation
    • 1
    Internal I/o Headers
    SATA 6 Gb/s Headers
    • 6
    USB 2.0 Headers
    • 3
    ATX Power Connectors
    • 1 (24 Pin ATX Power Connectors)
    Fan Headers
    • 1 (Processor Fan Headers), 2 (System Fan Headers)
    Front Panel Headers
    • 2
    Other Connectors
    • 1 x Clear CMOS Jumper, 1 x 4 - pin ATX 12V Power Connector, 1 x Power Fan Header, 1 x S/PDIF Out Header
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 6
    USB 3.0 Ports, Controller
    • 2
    Audio I/O Channels
    • 3
    RJ-45 Ethernet Jacks
    • 1
    PS/2
    • 1
    General Features
    Hardware Monitoring
    • System Voltage Detection, CPU / System Temperature Detection, CPU / System Fan Speed Detection, CPU Overheating Warning, CPU / System Fan Fail Warning, CPU / System Fan Speed Control
    Bundled Software
    • Norton Internet Security (OEM version)
    OS Support
    • Windows XP and Above
    BIOS
    • 2 x 32 Mbit Flash, Use of Licensed AWARD BIOS, Support for DualBIOS, PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
    Features
    • Power Failure Protection, High Temperature Protection, ErP Lot 6 support, Electrostatic Protectionm, Humidity Protection
    Advanced Technologies
    • On/Off Charge Technology, Hybrid EFI Technology, Super Speed USB 3.0 Technology, AutoGreen Technology
    Advanced Features
    • Support for BIOS, Support for Q-Flash, Support for Xpress BIOS Rescue, Support for Download Center, Support for Xpress Install, Support for Xpress Recovery2, Support for EasyTune, Support for Smart Recovery, Support for Auto Green, Support for On / Off Charge, Support for Q-Share
    Limitations
    • Due to Windows 32-bit Operating System Limitation When More than 4 GB of Physical Memory is Installed the Actual Memory Size Displayed will be Less than 4 GB, To Support a DDR3 1866 MHz (and above) Memory, You Must Install an AM3+ CPU First
    Dimensions
    Dimensions
    • 225 x 305 mm
    Warranty
    Domestic Term
    • 3 Years GIGABYTE India Warranty and Free Transit Insurance.
    Warranty Summary
    • 3 Year Domestic Warranty
    Covered in Warranty
    • Manufacturing Defects are Covered
    Not Covered in Warranty
    • Forceful Tampering, Burnt, Mishandling and Physical Damage
    Warranty Service Type
    • Carry In
