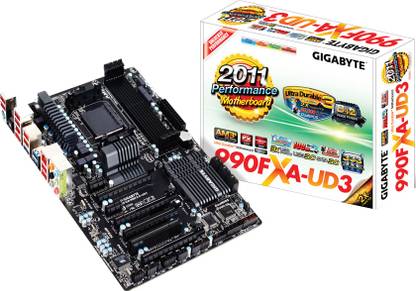

GIGABYTE GA-990FXA-UD3 AM3+Socket ATX AMD 990FX Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Warranty

3 Year Domestic Warranty

Highlights

AMD 990FX
Data Rate DDR3
Maximum RAM Capacity 32
Form Factor: ATX

Specifications

Back Panel Ports

USB 2.0 Ports, Controller	8
USB 3.0 Ports, Controller	2
eSATA Ports, Controller	2
IEEE 1394a Ports	1
Audio I/O Channels	6
Optical S/PDIF Ports and S/PDIF Out ports	1 (S/PDIF Out Ports)
RJ-45 Ethernet Jacks	1
PS/2	1

In The Box

Sales Package

Motherboard, SATA Cables, SLI Bridge, Rear I/O Panel Shield and Supporting CD Software

General Features

Hardware Monitoring	System Voltage Detection, CPU / System Temperature Detection, CPU / System / Power Fan Speed Detection, CPU Overheating Warning, CPU / System/Power Fan Fail Warning, CPU / System Fan Speed Control
Bundled Software	Norton Internet Security (OEM version)
OS Support	Windows XP and Above
BIOS	2 x 32 Mbit Flash, Use of Licensed AWARD BIOS, Support for DualBIOS, PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Features	Hyper Transport 5200 MT/s, Support for Dolby Home Theater, ITE IT8720 chip
Advanced Technologies	On/Off Charge Technology, AMD OverDrive Support, 108dB Signal-to-Noise Ratio Playback, GIGABYTE Touch BIOS, Turbo XHD- Full Automatic RAID 0/Stripe,GIGABYTE Innovative Technology- Easy Energy Saver, ErP Lot 6 Support
Advanced Features	Support for BIOS, Support for Q-Flash, Support for Xpress BIOS Rescue, Support for Download Center, Support for Xpress Install, Support for Xpress Recovery2, Support for EasyTune, Support for Easy Energy Saver, Support for Smart Recovery, Support for Auto Green, Support for ON/OFF Charge, Support for Cloud OC, Support for 3TB+ Unlock, Support for Q-Share

Warranty

Domestic Term	3 Years GIGABYTE India Warranty and Free Transit Insurance.
Warranty Summary	3 Year Domestic Warranty
Covered in Warranty	Manufacturing Defects are Covered
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Physical Damage
Warranty Service Type	Carry In

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	1866 MHz, 2000 (O.C) MHz, 1066 MHz, 1600 MHz, 1333 MHz

Limitations

Due to Windows 32-bit Operating System Limitation When more than 4 GB of Physical Memory is Installed, the Actual Memory Size Displayed will be Less han 4 GB, to support a DDR3 1866 MHz (and above) Memory, You must Install an AMD AM3+ CPU first

Dimensions

244 x 305 mm

Essentials

Form Factor	ATX
Socket Type	AM3+
Compatible Processors	AMD Phenom II X2 Series Processor, AMD Athlon II X4 Series Processor, AMD Phenom II X6 Series Processor, AMD Phenom II X4 Series Processor, AMD Sempron Processor, AMD Phenom II X3 Series Processor, AMD Athlon II X2 Series Processor, AMD Athlon II X3 Processor
Chipset	AMD 990FX, AMD SB950
Chipset Manufacturer	AMD

Graphics

Multi GPU Support

Yes, AMD CrossFireX, NVIDIA SLI

Storage

SATA 6 Gb/s	AMD SB950
RAID Controller	AMD SB950
RAID Configurations	0, 1, 5, 10, JBOD

Expansion Slots

PCI Slots	1
PCIe x1 Slots, Generation	2
PCIe x16 Slots, Generation	2

General

Brand	GIGABYTE
Model ID	GA-990FXA-UD3
Key Features	ATX Form Factor, AM3+ Socket Type, Maximum 32 GB DDR3, Dual Channel DIMM Memory, 4 Memory Slots, AMD SB950, AMD 990FX, RAID Controller: AMD SB950

Connectivity

Ethernet Controller	Realtek RTL8111E
Ethernet Features	10/100/1000 Mbit
IEEE 1394a FireWire Controller	VIA VT6308

Audio

Audio Codec	Realtek ALC889
Audio Features	High Definition Audio

Internal I/o Headers

SATA 6 Gb/s Headers	6
USB 2.0 Headers	3
USB 3.0 Headers	1
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers	1 (Processor Fan Headers), 2 (System Fan Headers)
Front Panel Headers	2
Other Connectors	1 x Clearing CMOS Jumper, 1 x Serial Port Header, 1 x S/PDIF Out header
