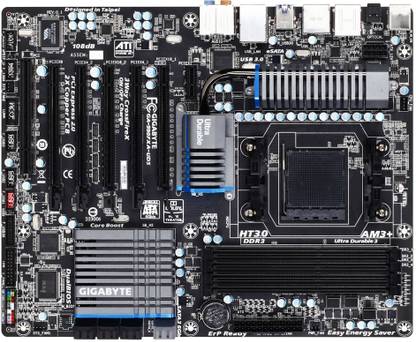

GIGABYTE GA-990FXA-UD5 AM3+Socket ATX AMD 990FX Chipset DDR3 Motherboard for Desktop

GIGABYTE GA-990FXA-UD5 AM3+Socket ATX AMD 990FX Chipset DDR3 Motherboard for Desktop

Price: Not Available
Currently Unavailable
Highlights
  • Suitable For Desktop
  • AMD 990FX
  • Data Rate DDR3
  • Maximum RAM Capacity 32
  • Form Factor: ATX
Specifications
In The Box
Sales Package
  • 4 x SATA Cable, 2WAY/3WAY SLI Bridge
General
Brand
  • GIGABYTE
Model ID
  • GA-990FXA-UD5
Essentials
Form Factor
  • ATX
Socket Type
  • AM3+
Compatible Processors
  • Socket AM3: AMD Phenom II X6, AMD Athlon II X2, AMD Phenom II X4, Socket AM3+: AMD FX, AMD Phenom II X3, AMD Sempron, AMD Athlon II X3, AMD Athlon II, AMD Phenom II X2, AMD Athlon II X4
FSB
  • 2600 MHz
Chipset
  • AMD 990FX, AMD SB950
Chipset Manufacturer
  • AMD
Memory
Number of Memory Slots
  • 4 Slots
Memory Configuration
  • 32 DDR3 Dual Channel DIMM
Memory Frequency
  • 1866 MHz, 2000(O.C) MHz, 1066 MHz, 1600 MHz, 1333 MHz
Storage
SATA 6 Gb/s
  • AMD SB950 Chipset, Marvell 88SE9172
RAID Controller
  • AMD SB950 Chipset
RAID Configurations
  • 0, 1, 5, 10, JBOD
Graphics
External Graphics Card Support
  • Yes
Multi GPU Support
  • Yes, AMD CrossFireX, NVIDIA SLI
Audio
Audio Codec
  • Realtek ALC889
Audio Channels
  • 7.1
Audio Features
  • High Definition Audio, Support Dolby Home Theater
Connectivity
Ethernet Controller
  • Realtek RTL8111E
Ethernet Features
  • 10/100/1000 Mbit
IEEE 1394a FireWire Controller
  • VIA VT6308
Number of FireWire Ports
  • 1
Expansion Slots
PCI Slots
  • 1
PCIe x1 Slots, Generation
  • 1, 2
PCIe x16 Slots, Generation
  • 2, 1
Internal I/o Headers
SATA 6 Gb/s Headers
  • 8
USB 2.0 Headers
  • 3
USB 3.0 Headers
  • 1
ATX Power Connectors
  • 1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers
  • 1 (Processor Fan Headers), 3 (System Fan Headers)
Front Panel Headers
  • 2
Other Connectors
  • 1 x Clearing CMOS Jumper, COM Port (2x5), 1 x Serial Port Header, 1 x S/PDIF Out Header
Back Panel Ports
USB 2.0 Ports, Controller
  • 8
USB 3.0 Ports, Controller
  • Etron EJ168, 2
IEEE 1394a Ports
  • 1
Audio I/O Channels
  • 6
Optical S/PDIF Ports and S/PDIF Out ports
  • 1 (S/PDIF Out Ports)
RJ-45 Ethernet Jacks
  • 1
PS/2
  • 1
General Features
Hardware Monitoring
  • System Voltage Detection, CPU/System Temperature Detection, CPU/System/Power Fan Speed Detection, CPU Overheating Warning, CPU/System/Power Fan Fail Warning, CPU/System Fan Speed Control
Bundled Software
  • Norton Internet Security (OEM version)
BIOS
  • 2 x 32 Mbit Flash, Use of licensed AWARD BIOS, Support for DualBIOS, PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Features
  • Hyper Transport Bus: 5200 MT/s, AMD AM3 Processor, I/O Controller: ITE IT8720 Chip, Support AMD AM3+
Advanced Features
  • Support for BIOS, Support for Q-Flash, Support for Xpress BIOS Rescue, Support for Download Center, Support for Xpress Install, Support for Xpress Recovery2, Support for EasyTune, Support for Easy Energy Saver, Support for Smart Recovery, Support for Auto Green, Support for On/Off Charge, Support for Cloud OC, Support for 3TB+ Unlock, Support for Q-Share
Limitations
  • External Graphics Card required (not included in the box)
Dimensions
Dimensions
  • 244 x 305 mm
Warranty
Domestic Term
  • 3 Years GIGABYTE India Warranty and Free Transit Insurance.
Warranty Service Type
  • Carry In
Ratings & Reviews
3
11 Ratings &
3 Reviews
  • 5
  • 4
  • 3
  • 2
  • 1
  • 4
  • 1
  • 1
  • 1
  • 4
2

Ummm... backward movement?

Bought this to upgrade from a Gigabyte 790X board, two years after the 7 series was discontinued. Not a good choice. Let me explain.

The board now supports only half-length PCIE cards in the first slot, the NB heatsink blocks the space behind the slot. If you run two large graphics cards (like I do) you have no choice but to use that slot for soundcards or a wireless card. You can't. I don't know many cards that will fit that slot.

You can use the lone PCIE x8 slot but then your second PCIE...
READ MORE

cranky

Certified Buyer

Feb, 2012

7
2
Report Abuse
5

Amazing Board.!!!! Noobs Get your Facts Straight..!!!

This is one of the most Efficient Motherboard in terms of Power to Performance. I had to choose between M5A99 FX and this one. M5A99 is also a cool board from asus, but it has a 6+2 Power Phase apart from UD5's 8+2. It doesnt matters much on stock performance but becomes significant while overclocking. The motherboard is intelligently built, with USB ports on proper position.
It has High Quality Capacitors and Dual Bios. The Board is very easy to set up. Ram slots are in proper position and w...
READ MORE

Jitendra Dubey Dubey

Certified Buyer, Bhopal

Oct, 2014

0
2
Report Abuse
3

I got a product with a cover that was pretty old and just after 4 months, the product clonked off

I bought this product with lots of expectation. But somehow, the motherboard stopped working now. Even the BIOS doesnt come up.

I would like to know how to use the warranty. Whom should I contact for warranty? How does it work. I am in dare need and my work is stalled because if this!!

Please help
READ MORE

Viji Mathew

Certified Buyer, Visakhapatnam

Aug, 2015

0
0
Report Abuse
