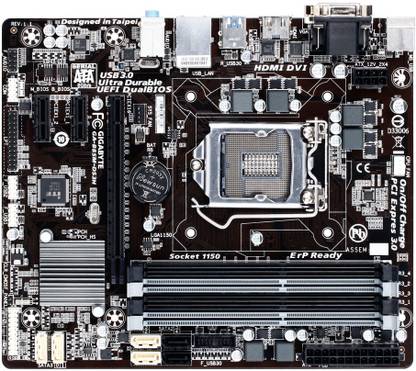

GIGABYTE GA-B85M-DS3H LGA 1150Socket Micro-ATX Intel B85 Express Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Warranty

3 Years Gigabyte India Warranty and Free Transit Insurance

Highlights

Intel B85 Express
Data Rate DDR3
Maximum RAM Capacity 32
Form Factor: Micro-ATX

Specifications

In The Box

Sales Package

Motherboard, SATA Cables, Rear I/O Panel Shield, SATA Cable and Supporting CD Software

General

Brand	GIGABYTE
Model ID	GA-B85M-DS3H

Essentials

Form Factor	Micro-ATX
Socket Type	LGA 1150
Compatible Processors	Intel Pentium Processors, Intel Core i7 Processors, Intel Core i5 Processors, Intel Core i3 Processors, Intel Celeron Processors
Chipset	Intel B85 Express
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	1600 MHz, 1333 MHz
ECC Support	Non-ECC

Storage

SATA 3 Gb/s	Intel B85 Express
SATA 6 Gb/s	Intel B85 Express

Graphics

Integrated Graphics card

Audio

Audio Codec	Realtek ALC887
Audio Channels	7.1
Audio Features	High Definition Audio

Connectivity

Ethernet Controller	Realtek GbE
Ethernet Features	10/100/1000 Mbit

Expansion Slots

PCIe x1 Slots, Generation	2, 2
PCIe x16 Slots, Generation	3, 1

Internal I/o Headers

SATA 3 Gb/s Headers	2
SATA 6 Gb/s Headers	4
USB 2.0 Headers	2
USB 3.0 Headers	1
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x Front Panel Audio Header, 1 x Parallel Port Header, 1 x Clear CMOS Jumper, 1 x Serial Port Header

Back Panel Ports

USB 2.0 Ports, Controller	4
USB 3.0 Ports, Controller	2
HDMI Ports	1
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	3
RJ-45 Ethernet Jacks	1
PS/2	1
Other Ports	1 x DVI-D Port

General Features

Hardware Monitoring	System Voltage Detection, CPU / System Temperature Detection, CPU / System Fan Speed Detection, CPU Overheating Warning, CPU / System Fan Fail Warning, CPU / System Fan Speed Control
Bundled Software	Norton Internet Security (OEM Version), Intel Rapid Start Technology, Intel Smart Connect Technology, Intel Small Business Advantage
OS Support	8, Windows: 7
BIOS	2 x 64 Mbit Flash, Use of Licensed AMI EFI BIOS, Support for DualBIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Features	EasyTune, Smart Recovery2, Dimensions: 226 x 193 mm, Support for Q-Flash, Support for ON / OFF Charge, I/O Controller: iTE I/O Controller Chip, BIOS, Support for Xpress Install, Support for APP Center, Smart TimeLock, USB Blocker, EZ Setup, L3 Cache Varies with CPU
Advanced Features	Support for Extreme Memory Profile (XMP) Memory Modules

Warranty

Warranty Summary

3 Years Gigabyte India Warranty and Free Transit Insurance

Ratings & Reviews

3.9

★

10 Ratings &

2 Reviews

5★
4★
3★
2★
1★

Beware before buying any Gigabyte product”

Beware of cheating- Gigabyte makes new versions with lower specs

The product you will receive looks different from what is shown here on Flipkart.
Gigabyte makes different versions of the same motherboard model.
You will receive new version with lower specs, precisely missing some components from motherboard like capacitors and other important parts which could affect performance of the motherboard.
After technical inspection of motherboard by one of techie friend,conclusion was simple Giga...

Rohit

Dec, 2014

Permalink

Report Abuse

best motherboard for this price !!

namely the best i cud say with 32 gb dimm slots of ram and pci 3.0 for a single gpu this is enough !!! and this is small and looks pretty !!! buy this im using i5 processor and god damn im really amazed by its performance !!!

Vignesh J

Certified Buyer, Tiruchirappalli

Sep, 2014

Permalink

Report Abuse
