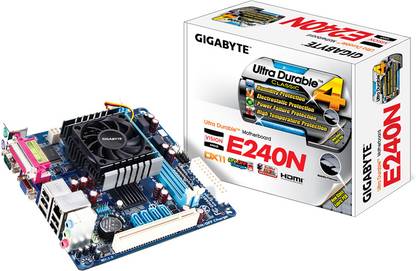

GIGABYTE GA-E240N BGA FT1Socket Mini-ITX AMD A45 Chipset DDR3 Motherboard

Freedom Sale starts in01 hrs : 45 mins : 39 secs

GIGABYTE GA-E240N BGA FT1Socket Mini-ITX AMD A45 Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Warranty

3 Year Domestic Warranty

Highlights

AMD A45
Data Rate DDR3
Maximum RAM Capacity 16
Form Factor: Mini-ITX

Specifications

Back Panel Ports

USB 2.0 Ports, Controller	4
HDMI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	3
RJ-45 Ethernet Jacks	1
PS/2	2

In The Box

Sales Package

Motherboard, SATA Cables, Rear I/O Panel Shield and Supporting CD Software

General Features

Hardware Monitoring	System Voltage Detection, CPU / System Temperature Detection, CPU / System Fan Speed Detection, CPU Overheating Warning, CPU / System Fan Fail Warning, CPU / System Fan Speed Control
Bundled Software	Norton Internet Security (OEM version)
OS Support	Windows Vista, Windows XP, Windows 7
BIOS	2 x 32 Mbit Flash, Use of Licensed AWARD BIOS, Support for DualBIOS, PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Features	iTE I/O Controller Chip
Advanced Technologies	Hybrid EFI Technology, On/Off Charge Technology
Advanced Features	Support for BIOS, Support for Q-Flash, Support for Xpress Install, Support for EasyTune, Support for Smart Recovery, Support for Auto Green, Support for ON/OFF Charge, Support for Q-Share

Warranty

Domestic Term	3 Years GIGABYTE India Warranty and Free Transit Insurance.
Warranty Summary	3 Year Domestic Warranty
Covered in Warranty	Manufacturing Defects are Covered
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Physical Damage
Warranty Service Type	Carry In

Memory

Number of Memory Slots	2 Slots
Memory Configuration	16 DDR3 Single Channel DIMM
Memory Frequency	1066 MHz, 1333 (O.C) MHz

Limitations

Due to a Windows 32-bit Operating System Limitation, when more than 4 GB of Physical Memory is Installed, the Actual Memory size Displayed will be less than the size of the Physical Memory Installed

Dimensions

170 x 170 mm

Essentials

Form Factor	Mini-ITX
Socket Type	BGA FT1
Compatible Processors	AMD E-240
Chipset	AMD A45
Chipset Manufacturer	AMD

Graphics

Integrated Graphics card

Yes, AMD Radeon HD 6310

Expansion Slots

PCI Slots

General

Brand	GIGABYTE
Model ID	GA-E240N
Key Features	Mini-ITX Form Factor, Maximum 16 GB DDR3, BGA FT1 Socket Type, AMD A45 FCH, Single Channel DIMM Memory, 2 Memory Slots, 1 HDMI Ports

Connectivity

Ethernet Controller	Realtek GbE
Ethernet Features	10/100/1000 Mbit

Audio

Audio Codec	Realtek ALC887
Audio Features	High Definition Audio

Internal I/o Headers

SATA 3 Gb/s Headers	4
USB 2.0 Headers	2
ATX Power Connectors	1 (24 Pin ATX Power Connectors)
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	2
Other Connectors	1 x Clear CMOS Jumper, 1 x Power LED Header, 1 x S/PDIF Out Header, 1 x 4-pin ATX 12V Power Connector, 1 x Chassis Intrusion Header

Ratings & Reviews

★

2 Ratings &

1 Reviews

5★
4★
3★
2★
1★

Great for HTPC

ITs a great combo for any one with modest computing needs like streaming videos via DLNA aka home media server or senior citizens who want to do daily works like email etc.

It has a radeon gpu chip which accelerates 1080-p videos and can handle all that stuffs with ease

Harsh Wardhan Gunthey

Jul, 2014
