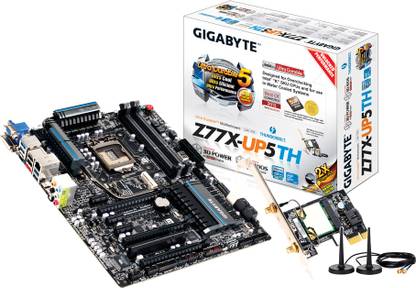

Gigabyte GA-Z77X-UP5 TH Motherboard

Price: Not Available

Currently Unavailable

Warranty

3 Years Gigabyte India Warranty and Free Transit Insurance

Highlights

Intel Z77
Data Rate DDR3
Maximum RAM Capacity 32
Form Factor: ATX

Specifications

Back Panel Ports

USB 3.0 Ports, Controller	4, VIA USB 3.0 Hub, Intel Z77 Express
eSATA Ports, Controller	Marvell 88SE9172, 1
HDMI Ports	1
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	5
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1
Other Ports	2 x Thunderbolt Ports (MDP1/MDP2)

In The Box

Sales Package

Motherboard, Quick Guide, Sata Cables, Wi-Fi Antenna, USB 3.0 Panel and Rear I/O Panel Shield

General Features

Hardware Monitoring	System Voltage Detection, CPU/System Temperature Detection, CPU/System Fan Speed Detection, CPU Overheating Warning, CPU/System Fan Fail Warning, CPU/System Fan Speed Control
Bundled Software	Norton Internet Security (OEM Version), Intel Rapid Start Technology, Intel Smart Connect Technology, Intel Smart Response Technology, LucidLogix Virtu MVP
OS Support	Windows: XP, 7 and 8
BIOS	2 x 64 Mbit Flash, Use of Licensed AMI EFI BIOS, Support for DualBIOS, PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Features	Intel Gigabit Ethernet with CFOS Speed Internet Accelerator Software, DVI-D Port (Supporting a Maximum Resolution of 1920 x 1200), Gigabyte 3D Power (Patent Pending) Utility, Built-in Front Audio Headphone Amplifier, 2 Thunderbolt Ports (MDP1/MDP2) Support for Mini-DisplayPort and Thunderbolt Monitor and Supporting a Maximum Resolution of 2560 x 1600, Onboard mSATA Support for mSATA SSDs, Enhanced Built-in Visuals, DirectX 11 Support, HDMI Port (Supporting a Maximum Resolution of 1920 x 1200), Support for Extreme Memory Profile (XMP) Memory Modules, iTE I/O Controller Chip, 8 Phase VRM Design
Advanced Technologies	Dual Thunderbolt Technology, Gigabyte Ultra Durable 5 Technology, Daisy Chain Technology, Gigabyte UEFI DualBIOS Technology, M.I.T Tuning Technology, Expansion Bus Technology, Intel Rapid Start Technology, Intel Smart Connect Technology, Smart Ready Technology, Lucid Virtu GPU Virtualization Technology, Intel Smart Response Technology, SuperSpeed USB 3.0 Technology, SATA Revision 3.0 (6 Gbps) Technology
Advanced Features	Support for @BIOS, Support for Q-Flash, Support for Xpress Install, Support for EasyTune, Support for Xpress Recovery2, Support for eXtreme Hard Drive (X.H.D), Support for Auto Green, Support for On/Off Charge, Support for Q-Share, Support for 3D Power, Support for EZ Setup, Triple Monitor Support, Gigabyte 333 Onboard Acceleration, Intel Quick Sync 2.0, Gigabyte 3-Way Digital Power

Warranty

Domestic Term	3 Years GIGABYTE India Warranty and Free Transit Insurance.
Warranty Summary	3 Years Gigabyte India Warranty and Free Transit Insurance
Covered in Warranty	Manufacturing Defects
Not Covered in Warranty	Tampering, Physical Damages
Warranty Service Type	Carry In

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 2800 (O.C) MHz, 1600 MHz, 1333 MHz
ECC Support	Non-ECC

Limitations

Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. The DVI-D port does not support D-Sub connection by adapter. Simultaneous output for DVI-D and the MDP2 Thunderbolt port is not supported. When a monitor connected to the DVI-D port, the MDP2 Thunderbolt port can support Thunderbolt storage devices only. Due to PC architecture I/O resources limitation, the amount of the Thunderbolt devices can be used is dependent on the quantity of PCI Express and PCI devices be installed. For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode. The PCIEX4 slot is available only when an Intel 22 nm (Ivy Bridge) CPU is installed. The PCIEX4 slot shares bandwidth with the PCIEX8 and PCIEX16 slots. When the PCIEX4 slot is populated, the PCIEX16 slot will operate at up to x8 mode and the PCIEX8 will operate at up to x4 mode. Whether PCI Express 3.0 is supported depends on CPU and graphics card compatibility. The SATA2 5 connector will become unavailable when the mSATA connector is installed with a solid state drive. When a RAID set is built across the SATA 6 Gb/s and SATA 3 Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected. In Windows XP, the Intel USB 3.0 ports and VIA USB 3.0 HUB can support up to USB 2.0 transfer speed. Due to a Windows 7 limitation, please connect your USB device(s) to the USB 2.0/1.1 port(s) before the Intel USB 3.0 controller driver is installed.

Dimensions

305 x 244 mm

Essentials

Form Factor	ATX
Socket Type	LGA 1155
Compatible Processors	Intel Core i5 Processor, Intel Pentium Processor, Intel Core i3 Processor, Intel Xeon Processor, Intel Core i7 Processor, Intel Celeron Processor
Chipset	Intel Z77
Chipset Manufacturer	Intel

Graphics

Integrated Graphics card	Yes
External Graphics Card Support	Yes
Multi GPU Support	Yes, AMD CrossFireX Technology, Nvidia SLI Technology

Storage

SATA 3 Gb/s	Intel Z77 Express
SATA 6 Gb/s	Intel Z77 Express, Marvell 88SE9172
RAID Controller	Intel Z77 Express, Marvell 88SE9172 (for RAID 0 and 1 Only)
RAID Configurations	0, 1, 5, 10

Expansion Slots

PCI Slots	1
PCIe x1 Slots, Generation	2, 3
PCIe x16 Slots, Generation	3

General

Brand	GIGABYTE
Model ID	GA-Z77X-UP5 TH
Key Features	ATX Form Factor, LGA 1155 Socket Type, Raid Controller: Intel Z77 Express, Maximum 32 GB DDR3, 4 Memory Slots, Dual Channel DIMM Memory, Intel Z77 Express

Connectivity

Ethernet Controller	Intel Gigabit Ethernet
Ethernet Features	10/100/1000 Mbit
IEEE 1394a FireWire Controller	VIA VT6308
Number of FireWire Ports	1
Wireless and Bluetooth	Wi-Fi 802.11 a/b/g/n (Wi-Fi Card), Supports 2.4/5 GHz Dual-Band and Bluetooth v4.0, v3.0 + HS, v2.1 + EDR

Audio

Audio Codec	Realtek ALC898
Audio Channels	7.1
Audio Features	High Definition Audio, Support for X-Fi Xtreme Fidelity and EAX Advanced HD 5.0 Technology, 110 dB SNR

Internal I/o Headers

SATA 3 Gb/s Headers	4
SATA 6 Gb/s Headers	3
USB 2.0 Headers	2
USB 3.0 Headers	3
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers	1 (Processor Fan Headers), 4 (System Fan Headers)
Front Panel Headers	2
Other Connectors	Voltage Measurement Points, 1 x Clear CMOS Jumper, 1 x Reset Button, 1 x Clear CMOS Button, 1 x BIOS Switch Button, 1 x PCIe Power Connector, 1 x mSATA Connector, 1 x S/PDIF In Header, 1 x Power Button, 1 x S/PDIF Out Header
