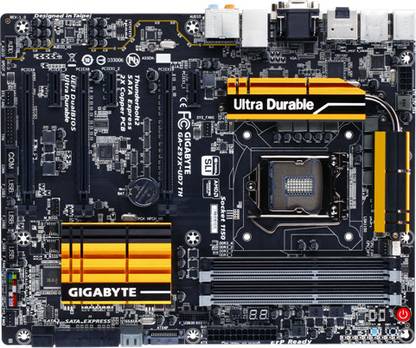

GIGABYTE GA-Z97X-UD7 TH LGA 1150Socket ATX Intel Z97 Express Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Warranty

3 Years Warranty

Highlights

Intel Z97 Express
Data Rate DDR3
Maximum RAM Capacity 32
Form Factor: ATX

Specifications

Back Panel Ports

USB 3.0 Ports, Controller	6
HDMI Ports	1
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	6
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1
PS/2	1
Other Ports	1 x DVI-D, 2 x Thunderbolt Ports

In The Box

Sales Package

Motherboard, User Manual, Driver CD and Cables

General Features

Hardware Monitoring	System Voltage Detection, CPU/System/Chipset Temperature Detection, CPU/CPU OPT/System Fan Speed Detection, CPU/System Overheating Warning, CPU/CPU OPT/System Fan Fail Warning, CPU/CPU OPT/System Fan Speed Control
Bundled Software	Norton Internet Security (OEM Version), Intel Rapid Start Technology, Intel Smart Connect Technology, Intel Smart Response Technology
OS Support	8, 8.1, Windows: 7
BIOS	2 x 128 Mbit Flash, Use of Licensed AMI UEFI BIOS, Support for DualBIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Features	USB Blocker, Support for Smart Switch, Support for Xpress Install, EZ Setup, 1 x DVI-D Port, Supporting a Maximum Resolution of 1920x1200 at 60 Hz, 1 x D-Sub Port, Support for APP Center (Available Applications in APP Center May Differ by Motherboard Model. Supported Functions of Each Application May also Differ Depending on Motherboard Specifications) BIOS, EasyTune, Fast Boot, System Information Viewer, Smart TimeLock, The DVI-D Port does not Support D-Sub Connection by Adapter, Supporting a Maximum Resolution of 4096x2160 at 24 Hz or 2560x1600 at 60 Hz, Supporting a Maximum Resolution of 1920x1200 at 60 Hz, Support for HDMI 1.4a Version, 1 x HDMI Port, the DVI Port will Become Unavailable, Because of the Limited I/O Resources of the PC Architecture, Support for Upto 3 Displays at the Same Time Maximum Shared Memory of 512 MB, Dimenssions: 305 x 244 mm, On / Off Charge, Intel DSL5520 Chip: 2 Thunderbolt Ports (MDP1/MDP2) Support for Mini-DisplayPort and Thunderbolt Monitors, If a Monitor is Connected to the MDP2 Thunderbolt Port, Smart Recovery 2, Support for Q-Flash, the Number of Thunderbolt Devices that can be Used is Dependent on the Number of the PCI Express and PCI Devices Being Installed, and Supporting a Maximum Resolution of 3840x2160 at 60 Hz
Advanced Features	Support for Extreme Memory Profile (XMP) Memory Modules

Warranty

Warranty Summary

3 Years Warranty

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	1600 MHz, 1800 (O.C) MHz, 2400 (O.C) MHz, 2500 (O.C) MHz, 2200 (O.C) MHz, 2600 (O.C) MHz, 2666 (O.C) 2800 (O.C) MHz, 1333 MHz, 2933 (O.C) MHz, 3100 (O.C) MHz, 1866 (O.C) MHz, 2000 (O.C) MHz, 2133 (O.C) MHz, 3000 (O.C) MHz, 3200 (O.C) MHz
ECC Support	Non-ECC

Essentials

Form Factor	ATX
Socket Type	LGA 1150
Compatible Processors	Intel Core i5 Processors, Intel Core i3 Processors, Intel Core i7 Processors, Intel Celeron Processors, Intel Pentium Processors
Chipset	Intel Z97 Express
Chipset Manufacturer	Intel

Graphics

Integrated Graphics card	Yes
Multi GPU Support	Yes, Support for 3-Way / 2-Way AMD CrossFire and 2-Way NVIDIA SLI Technology

Storage

SATA 6 Gb/s	Intel Z97 Express, Marvell 88SE9172
RAID Controller	Intel Z97 Express, Marvell 88SE9172
RAID Configurations	0, 1, 5, 10

Expansion Slots

PCIe x1 Slots, Generation	2, 3
PCIe x16 Slots, Generation	3, 3

General

Brand	GIGABYTE
Model ID	GA-Z97X-UD7 TH
Key Features	LGA 1150 Socket Type, Maximum 32 GB DDR3, 4 Memory Slots, Dual Channel Memory, ATX Form Factor, Intel Z97 Express Chipset

Connectivity

Ethernet Controller	Intel GbE
Ethernet Features	10/100/1000 Mbit

Audio

Audio Codec	Realtek ALC1150
Audio Channels	7.1
Audio Features	High Definition Audio, Support for S/PDIF Out

Internal I/o Headers

SATA 6 Gb/s Headers	8
USB 2.0 Headers	3
USB 3.0 Headers	1
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers	1 (Processor Fan Headers), 4 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x PCIe Power Connector, 1 x Water Cooling Fan Header (CPU_OPT), 1 x Clear CMOS Jumper, 1 x S/PDIF Out Header, 1 x SATA Express Connector, 1 x Front Panel Audio Header, 1 x Serial Port Header, 1 x Power Button, Voltage Measurement Points, 1 x Clear CMOS Button, 2 x BIOS Switches, 1 x Reset Button
