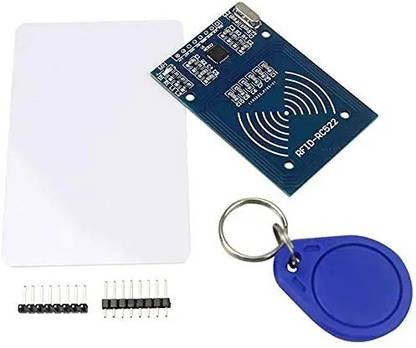

gobagee 1pc RC522 RFID Kit-13.56MHz RFID-RC522 Reader/Writer Module Smart Card RFID Chip Electronic Components Electronic Hobby Kit

About RC522 chip - MFRC522 is a highly integrated read and write chip which is applicable to 13.56MHz contactless communications. - It is a non-contact read and writer card chip, low voltage, low cost and small size, is a better choice for smart meters and portable handheld devices development. - MF RC522 completely integrated in all types of 13.56MHz passive contactless communication methods and protocols. - Support 14443A compatible transponder signals. The digital part handles ISO14443A framing and error detection. In addition, support fast CRYPTO1 encryption algorithms, terminology validation MIFARE products. - MFRC522 support MIFARE series of high-speed non-contact communication, two-way data transmission rate up to 424kbit/s. - As a highly integrated 13.56MHz card reader new family of chips, there are many similarities between MF RC522, MF RC500 and MF RC530, but also have many differences. Communication between it and the host SPI mode helps to reduce the connection, reduce PCB board size and cost. Item Specifications: Operating current :13-26mA/DC 3.3V Idle current :10-13mA/DC 3.3V Sleep current: <80uA Peak current: <30mA Operating Frequency: 13.56MHz Read Range: 0 ~ 35mm (mifare1 card) Size: 40mm×60mm Module interfaces SPI: Data transfer rate maximum 10Mbit/s.
