gobagee 7 SEGMENT LED COMMON Timer Counter and Clock Electronic Hobby Kit
Sasa Lele Starts In20 hrs : 10 mins : 01 secs

gobagee 7 SEGMENT LED COMMON Timer Counter and Clock Electronic Hobby Kit

Share

gobagee 7 SEGMENT LED COMMON Timer Counter and Clock Electronic Hobby Kit

5
2 Ratings & 2 Reviews
₹229
250
8% off
i
Available offers
  • Bank Offer5% Unlimited Cashback on Flipkart Axis Bank Credit Card
    T&C
  • Delivery
    Check
    Enter pincode
      Delivery by7 May, Wednesday|Free
      ?
      if ordered before 3:59 PM
    View Details
    Highlights
    • Power Source: DC
    • RoHS Compliant
    • Material: Plastic
    • Weight: 1
    Services
    • Cash on Delivery available
      ?
    Seller
    GoBagee
    3.7
    • 7 Days Return Policy
      ?
  • See other sellers
  • Description

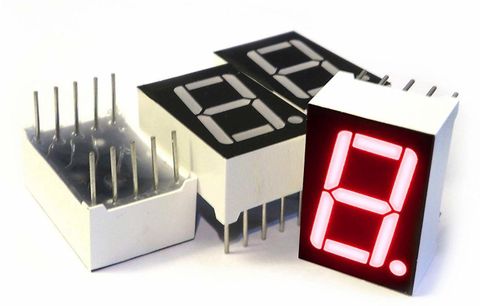

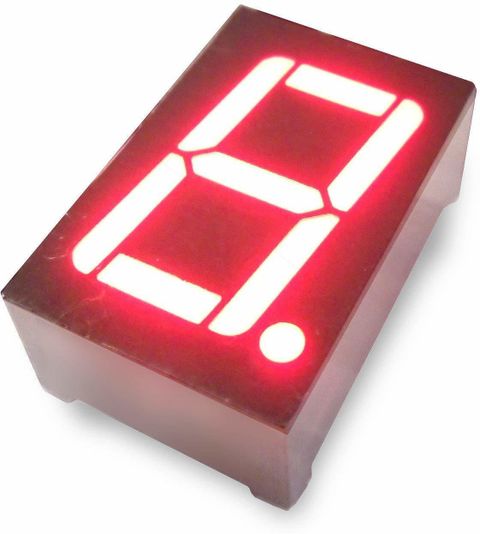

    A Seven-Segment Display (Ssd), Or Seven-Segment Indicator, Is A Form Of Electronic Display Device For Displaying Decimal Numerals That Is An Alternative To The More Complex Dot Matrix Displays. Seven-Segment Displays Are Widely Used In Digital Clocks, Electronic Meters, And Other Electronic Devices For Displaying Numerical Information. The Seven Elements Of The Display Can Be Lit In Different Combinations To Represent The Numerals. In A Simple Led Package, Typically All Of The Cathodes (Negative Terminals) Or All Of The Anodes (Positive Terminals) Of The Segment Leds Are Connected And Brought Out To A Common Pin; This Is Referred To As A "Common Cathode" Or "Common Anode" Device. Hence A 7 Segments Plus Decimal Point Package Will Only Require Nine Pins (Though Commercial Products Typically Contain More Pins, And/Or Spaces Where Pins Would Go, In Order To Match Standard Ic Sockets. Integrated Displays Also Exist, With Single Or Multiple Digits. Hexadecimal Digits Can Be Displayed On Seven-Segment Displays. A Particular Combination Of Uppercase And Lowercase Letters Are Used For A?F. In Addition, Seven Segment Displays Can Be Used To Show Various Other Letters Of The Latin, Cyrillic And Greek Alphabets Including Punctuation. Multiple-Digit Led Displays As Used In Pocket Calculators And Similar Devices Used Multiplexed Displays To Reduce The Number Of I/O Pins Required To Control The Display. For Example, All The Anodes Of The A Segments Of Each Digit Position Would Be Connected Together And To A Driver Circuit Pin, While The Cathodes Of All Segments For Each Digit Would Be Connected. To Operate Any Particular Segment Of Any Digit, The Controlling Integrated Circuit Would Turn On The Cathode Driver For The Selected Digit, And The Anode Drivers For The Desired Segments; Then After A Short Blanking Interval The Next Digit Would Be Selected And New Segments Lit, In A Sequential Fashion. In This Manner An Eight Digit Display With Seven Segments And A Decimal Point Would Require Only 8 Cathode Drivers And 8 Anode Drivers, Instead Of Sixty-Four Drivers And Ic Pins. Operating Voltage : 5v ~ 7v Operating Current : Up To 300ma
    Read More
    Specifications
    In The Box
    • 4pcs of 7 segment LED Display
    General
    brand
    • gobagee
    Model Number
    • 7 SEGMENT LED COMMON
    Type
    • Timer Counter and Clock
    ROHS Complaint
    • Yes
    Material
    • Plastic
    Dimensions
    Width
    • 1 cm
    Height
    • 1 cm
    Weight
    • 1
    Power Features
    Battery Type
    • NA
    No Of Batteries
    • NA
    Battery Size
    • NA
    Power Source
    • DC
    Other Power Features
    • Plastic Material
