GoodsBazaar Cable Float Switch Sensor for Water Level Controller ...

more

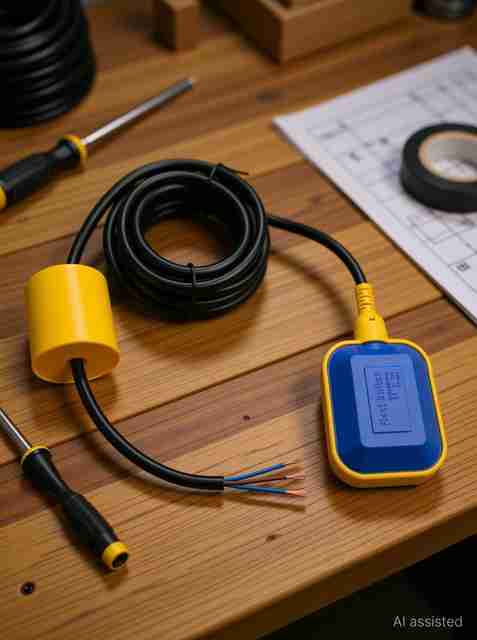

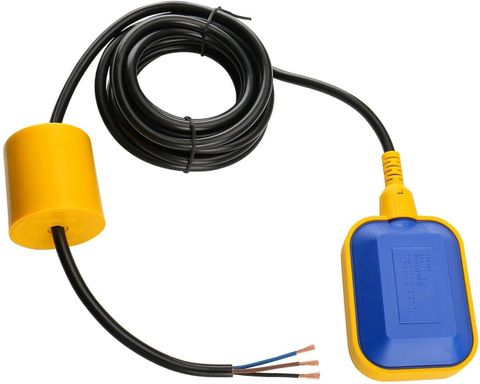

Cable Float Switch Water Level Controller for Tank Pump. This float switch can be used for both emptying and filling operations. Directly controls pumps up to 1/2 hp at 120 volts or 220 volts. Up to 12 amperes continuous or 13.3 non continuous ac amperage. Float level switch sensor is used as the level controlling device for the water tank, used as a dry run protection for submersible pump set. The water switch is supplied spdt for either pump up or pump down applications. FLOAT SWITCH FLUID LEVEL CONTROLLER RATED CURRENT/VOLTAGE: AC 10(8) A250V~10(4) A380V WORKING TEMPERATURE: 0C+80C CONTROL RANGE: >0.2M ELECTRICAL ENDURANCE: 50,000 TIMES CONTACTS: NO+NC BODY SIZE: 10 X 7.6 X 4.6CM (L*W*T) CYLINDER SIZE: 6.3 X 4.8CM (H*D) HOUSING MATERIAL: PLASTIC COLOR: BLUE, YELLOW, BLACK WEIGHT: 500 GRAM APPROX?
