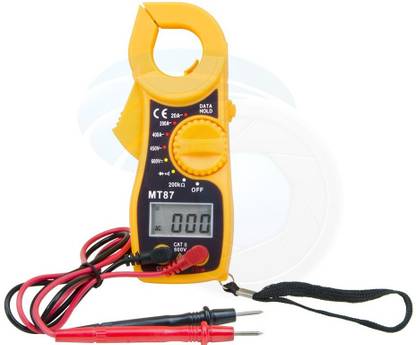

GoodsBazaar MT-87 Mini Pocket-Sized Digital Clamp Meter Clip-on Meter Tong Jaw Tester MT87 Digital Multimeter (Yellow 2000 Counts)

Price: Not Available

Currently Unavailable

Highlights

Material: Plastic
Display Type: LCD

Specifications

General

Brand	GoodsBazaar
Model Number	MT-87 Mini Pocket-Sized Digital Clamp Meter Clip-on Meter Tong Jaw Tester MT87
Type	Digital
Display Type	LCD
Color	Yellow
Material	Plastic
Primary Functions	This mt87 mini multimeter can measure ac/dc voltage, ac current and resistance. It can also indentify live-wire; it is an ideal tool for electrician's work. Diode test, continuity test, resistance measurements, transistor p-n junction test. Continuity test with buzzer sound while < 75 ohm.
Number of Counts	2000
Model Name	MT-87

Functions

Other Functions

AC CURRENT RANGE: 10MA ~ 20A, 100MA ~ 200A, 1A ~ 400A. OVERLOAD PROTECTION: 400A ON ALL RANGES. AC VOLTAGE: RANGE 1V ~ 450V. OVERLOAD PROTECTION: 450V AC ON ALL RANGES. DC VOLTAGE: RANGE 1V ~ 600V. OVERLOAD PROTECTION: 600V DC / (PEAK AC) ON ALL RANGES. RESISTANCE MEASUREMENT: 200K OHM RANGE. MAX DISPLAY: 1999, AUTO POLARITY DISPLAY. DATA HOLD FUNCTION. POWER: 2 X AAA 1.5V BATTERY (INCLUDED FOR YOU) CABLE LENGTH: 80 CM / 31.5 INCH. PACKAGE WEIGHT: 203G / 7.16 OZ PACKAGE DIMENSION: 150 X 65 X 28 MM / 5.9 X 2.56 X 1.10 INCH NOTE: IF A BATTERY SIGNAL APPEARS ON THE DISPLAY, IT INDICATES BATTERY SHOULD BE REPLACED.

Power Features

Other Power Features

Clamp meters’ work is mainly composed of an electromagnetic current meter and bushing type current mutual inductor. Straight through current transformer core made of movable opening, and a clamp on ammeter, named. The utility model relates to a portable instrument which can directly measure the ac current of a circuit without disconnecting the circuit. Clamp meter is composed of a current transformer and current meter assembly. The iron core of the current transformer can be opened when the wrench is pressed, and the wire passing through the current can be cut through the opening of the iron core without cutting off. The measured circuit conductor passing through the core becomes the primary coil of the current transformer, and the current is induced in the two coils through the current. Thus, the current meter connected with the two coils can be used to indicate the current of the measured line.
