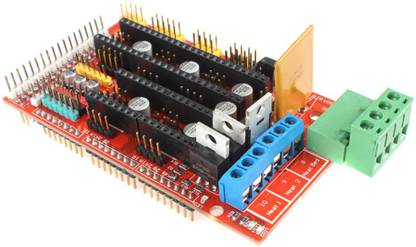

Grab'eM 3D PRINTER RAMPS SHIELD V1.4 for ARDUINO MEGA (Red)

Price: Not Available

Currently Unavailable

Warranty

Only for Manufacturing Defects

Highlights

Plastic, FR4, Metal Material
No batteries Battery
Non Rechargeable
Width x Height: 110 mm x 11 mm

Description

RAMPS is short for RepRap Arduino Mega Pololu Shield. It is designed to fit the entire electronics needed for a RepRap in one small package for low cost. RAMPS interfaces an Arduino Mega with its powerful platform and has plenty room for expansion. The modular design includes plug in stepper drivers and extruder control electronics on an Arduino MEGA shield for easy service, part replacement, upgrade-ability and expansion. Additionally, a number of Arduino expansion boards can be added to the system as long as the main RAMPS board is kept to the top of the stack. It is designed to fit the entire electronics needed for a RepRap in one small package for low cost. RAMPS interfaces an Arduino Mega with its powerful platform and has plenty room for expansion. The modular design includes plug in stepper drivers and extruder control electronics on an Arduino MEGA shield for easy service, part replacement, upgrade-ability and expansion. Additionally, a number of Arduino expansion boards can be added to the system as long as the main RAMPS board is kept to the top of the stack.

Specifications

General

Brand	Grab'eM
Model Name	3D PRINTER RAMPS SHIELD V1.4 for ARDUINO MEGA
Sales Package	1x 3D PRINTER RAMPS SHIELD V1.4 for ARDUINO MEGA
Skillset	Analysis & Critical Thinking, Creativity & Imagination, Motor Skills, Problem Solving, Curiosity Building, Problem Solving, Sensory Development
Number Of Batteries	0 Batteries
Minimum Age	6 years
Material	Plastic, FR4, Metal
Screen Size	N.A.
Screen Type	N.A.
Battery Operated	No
Battery Type	No batteries
Rechargeable	No
Audio Features	N.A.
Safety Features	Fuse protection, Non-toxic, Anti-static shield packaging
Other Features	Easy to Use
Type	Science Project Kit
Color	Red
Maximum Age	14
Ideal For	Boys and Girls
Character	NA
Net Quantity	1

Additional Features

Key Features

It has provisions for the cartesian robot and extruder., Expandable to control other accessories., 3 mosfets for heater / fan outputs and 3 thermistor circuits., Fused at 5A for additional safety and component protection, Heated bed control with additional 11A fuse, Fits 5 stepper driver boards on pin header sockets so they can be replaced easily or removed for use in future designs., I2C and SPI pins left available for future expansion., All the Mosfets are hooked into PWM pins for versatility., Servo style connectors are used to connect to the endstops, motors, and leds. These connectors are gold plated, rated for 3A, very compact, and globally available., USB type B receptacle SD Card add on available, LEDs indicate when heater outputs on, Option to connect 2 motors to Z for Prusa Mendel

Dimensions

Width	110 mm
Height	11 mm
Depth	53 mm
Weight	60 g
Box Depth	12 cm
Box Height	5 cm
Box Weight	150 g
Box Width	12 cm

Warranty

Domestic Warranty	1 Month
Warranty Summary	Only for Manufacturing Defects
Warranty Service Type	Repair
Not Covered in Warranty	Cables & Accessories, Gifts & promotional Goods, Physical Damage, Used products, Programmed products, Modified products
