Grab'eM ENC28J60 ETHERNET Module

Grab'eM ENC28J60 ETHERNET Module  (Blue)

Price: Not Available
Currently Unavailable
Warranty
Only for Manufacturing Defects
Highlights
  • Plastic, FR4, Metal Material
  • No batteries Battery
  • Non Rechargeable
  • Width x Height: 26 mm x 30 mm
Description

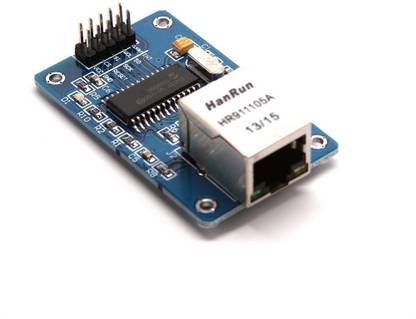

So you have a neat Arduino project going on. Wouldn't it be nice to add Internet connectivity and do it on the cheap as well? ENC28J60 Ethernet controller in the world's most compact header form. Small breakout board for the PIC Microchip ENC28J60. Contains all the necessary hardware to implement an Ethernet interface including the isolation transformer and LINK/STATUS LEDs. SPI interface makes this one of the easiest 10Base-T ICs yet! This Ethernet Breakout-Module is simplest way to add LAN connectivity to your microcontroller based products and projects. Use this module to enable Ethernet interface for your product. It works with any microcontroller operating at 3.3V or 5V. This module works at 3.3V and is compatible with 5V interface lines. Use SPI process to interface with it. Host web server, ping the module or add it to home automation via internet. Use of RJ45 with Integrated magnetics has made it possible to reduce the size of board. This is not a plug-n-play module. As every module we sell like SD/MMC or SIM or Motor driver, this module also needs a code writing for the microcontroller. Source code and hex files are not included. There is plenty of open source material available on the internet.
Read More
Specifications
General
Brand
  • Grab'eM
Model Name
  • ENC28J60 ETHERNET Module
Sales Package
  • 1x ENC28J60 ETHERNET Module
Skillset
  • Analysis & Critical Thinking, Creativity & Imagination, Motor Skills, Problem Solving, Curiosity Building, Problem Solving, Sensory Development
Number Of Batteries
  • 0 Batteries
Minimum Age
  • 6 years
Material
  • Plastic, FR4, Metal
Screen Size
  • N.A.
Screen Type
  • N.A.
Battery Operated
  • No
Battery Type
  • No batteries
Rechargeable
  • No
Audio Features
  • N.A.
Safety Features
  • Anti-static shield packaging
Other Features
  • Easy to Use
Type
  • Science Project Kit
Color
  • Blue
Maximum Age
  • 14
Ideal For
  • Boys and Girls
Character
  • NA
Net Quantity
  • 1
Additional Features
Key Features
  • LAN connector with build in transformer Two status LEDs on LAN connector, SPI interface takes only few pins to add Ethernet interface to your microcontroller project, 10 pin interface on 0.1" row pins header, PCB: FR-4, 1.5 mm (0,062"), green, Dimensions: 30x24 mm (1.18 x 0.95"), Space between the pin rows: 20 mm (0.8")
Dimensions
Width
  • 26 mm
Height
  • 30 mm
Depth
  • 18 mm
Weight
  • 15 g
Box Depth
  • 12 cm
Box Height
  • 5 cm
Box Weight
  • 110 g
Box Width
  • 12 cm
Warranty
Domestic Warranty
  • 1 Month
Warranty Summary
  • Only for Manufacturing Defects
Warranty Service Type
  • Repair
Not Covered in Warranty
  • Cables & Accessories, Gifts & promotional Goods, Physical Damage, Used products, Programmed products, Modified products
