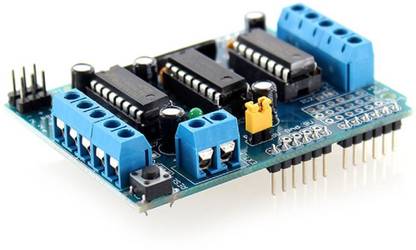

    Grab'eM L293D MOTOR DRIVER ARDUINO SHIELD

    Grab'eM L293D MOTOR DRIVER ARDUINO SHIELD  (Blue)

    Price: Not Available
    Currently Unavailable
    Warranty
    Only for Manufacturing Defects
    Highlights
    • Plastic, FR4, Metal Material
    • Width x Height: 69 mm x 21 mm
    Description
    Arduino is a great starting point for electronics, and with a motor shield it can also be a nice tidy platform for robotics and mechatronics. Here is a design for a full-featured motor shield that will be able to power many simple to medium-complexity projects. 2 connections for 5V 'hobby' servos connected to the Arduino's high-resolution dedicated timer - no jitter! Up to 4 bi-directional DC motors with individual 8-bit speed selection (so, about 0.5% resolution) Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil, interleaved or micro-stepping. Arduino is a great starting point for electronics, and with a motor shield it can also be a nice tidy platform for robotics and mechatronics. Here is a design for a full-featured motor shield that will be able to power many simple to medium-complexity projects.
    Read More
    Specifications
    General
    Brand
    • Grab'eM
    Model Name
    • L293D MOTOR DRIVER ARDUINO SHIELD
    Sales Package
    • 1x L293D MOTOR DRIVER ARDUINO SHIELD
    Skillset
    • Analysis & Critical Thinking, Creativity & Imagination, Motor Skills, Problem Solving, Curiosity Building, Problem Solving, Sensory Development
    Minimum Age
    • 6 years
    Material
    • Plastic, FR4, Metal
    Screen Size
    • N.A.
    Screen Type
    • N.A.
    Audio Features
    • N.A.
    Safety Features
    • Anti-static shield packaging
    Other Features
    • Easy to Use
    Type
    • Science Project Kit
    Color
    • Blue
    Maximum Age
    • 14
    Ideal For
    • Boys and Girls
    Character
    • GrabeM
    Net Quantity
    • 1
    Additional Features
    Key Features
    • 2 connections for 5V 'hobby' servos connected to the Arduino's high-resolution dedicated timer - no jitter!, Up to 4 bi-directional DC motors with individual 8-bit speed selection (so, about 0.5% resolution), Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil, interleaved or micro-stepping., 4 H-Bridges: L293D chipset provides 0.6A per bridge (1.2A peak) with thermal shutdown protection, 4.5V to 25V, Pull down resistors keep motors disabled during power-up Big terminal block connectors to easily hook up wires (10-22AWG) and power, Arduino reset button brought up top, 2-pin terminal block to connect external power, for seperate logic/motor supplies, Tested compatible with Mega, Diecimila, & Duemilanove
    Dimensions
    Width
    • 69 mm
    Height
    • 21 mm
    Depth
    • 53 mm
    Weight
    • 32 g
    Box Depth
    • 12 cm
    Box Height
    • 5 cm
    Box Weight
    • 120 g
    Box Width
    • 12 cm
    Warranty
    Domestic Warranty
    • 1 Month
    Warranty Summary
    • Only for Manufacturing Defects
    Warranty Service Type
    • Repair
    Not Covered in Warranty
    • Cables & Accessories, Gifts & promotional Goods, Physical Damage, Used products, Programmed products, Modified products
    Ratings & Reviews
    4
    ★
    27 Ratings &
    7 Reviews
    • 5★
    • 4★
    • 3★
    • 2★
    • 1★
    • 13
    • 8
    • 2
    • 1
    • 3
    5

    Terrific purchase

    Nice product
    READ MORE

    Santanu Mukherjee

    Certified Buyer, Cuttack

    May, 2017

    0
    0
    Permalink
    Report Abuse
    4

    Wonderful

    Good
    READ MORE

    Rahul Kumar

    Certified Buyer, Meerut

    Dec, 2016

    0
    0
    Permalink
    Report Abuse
    1

    Good but nothing fancy

    leg is not properly set to my arduino uno board. so i want replacement but they didnt replace it. and i desolering all leg and then solder it again. now its ohk.
    READ MORE

    HIMALAY KOLAVADA

    Certified Buyer, Mahesana

    Nov, 2016

    0
    0
    Permalink
    Report Abuse
    1

    Unsatisfactory

    Damaged product recived. Not accepting replacement. Ridiculous. Not recommended seller
    READ MORE

    Shiyas Padippurackal

    Certified Buyer, Thodupuzha

    Nov, 2016

    0
    0
    Permalink
    Report Abuse
    3

    Awesome

    Low quality capacitor used at power end 16v caps instead of 25v caps.(primary) (I referred data sheet.) For me one of my caps near the power input(C7) blasted. At 12v input. Then I noticed 16v caps are used and if you forget to take the power jumper of uno board will add power 5v or little low but if you use 12v for shield caps will ultimately blow up or may be ic will damage in my case I replaced the capacitor with the 25v 44uf (C7,C8) then it worked for me. And I used necessary heatsinks ...
    READ MORE

    Nithin Kumar

    Certified Buyer, Vadodara

    Nov, 2016

    1
    0
    Permalink
    Report Abuse
    4

    Nice work

    very good product. it support 12 V. looks good
    READ MORE

    Aditya Kujur

    Certified Buyer, Ranchi

    Nov, 2016

    0
    0
    Permalink
    Report Abuse
    5

    Brilliant

    Up to mark.... nice
    READ MORE

    Loknath

    Certified Buyer, Kanpur

    Oct, 2016

    0
    0
    Permalink
    Report Abuse
    +
