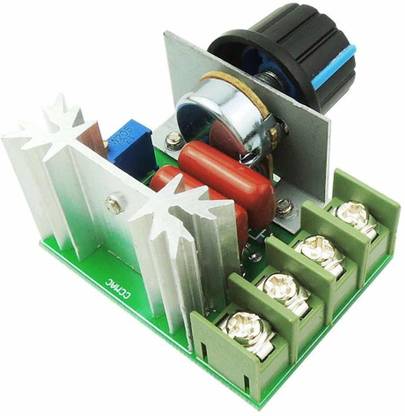

Grahikum PWM_AC 50-220V 2000W(max) 25A SCR Constant Voltage AC Motor Speed Controller LED Dimmers Motor Control Electronic Hobby Kit

Grahikum PWM_AC 50-220V 2000W(max) 25A SCR Constant Voltage AC Motor Speed Controller LED Dimmers Motor Control Electronic Hobby Kit

Price: Not Available
Currently Unavailable
Highlights
  • Power Source: DC
  • Material: Carbon Fiber
  • Weight: 50
Description
This controller uses high-quality scr. And the max current is up to 25a. For the safety, we suggest the continuous load current is within 5a. This ac voltage regulator can be used to control ac motor speed, ac light and heating wire temperature. Inductive or capacitive load power should be reduced. For Example, recommended for motors within 1000w operating instruction : Before you attempting to wire the controller, make sure all power is disconnected. 1. Cut any one of the battle line or zero line of the lamp or electrical appliances, and connect wires refer to the "wiring diagram" (No.6 picture) 2. Turn on the power, and adjust the potentiometer. 3.If the adjustment range is found to be small, please adjust the blue potentiometer on the product counterclockwise to set the maximum adjustment range to 50v to input voltage.
Read More
Specifications
In The Box
  • 1 Piece AC Motor Speed Controller
General
Brand
  • Grahikum
Model Number
  • PWM_AC 50-220V 2000W(max) 25A SCR Constant Voltage AC Motor Speed Controller LED Dimmers
Skillset
  • Creativity & Imagination
Type
  • Motor Control
ROHS Complaint
  • No
Material
  • Carbon Fiber
Age Group
  • 16+ Years
Key Features
  • High temperature fr-4 circuit board, The Input supply voltage is 110V ~ 220V AC, Its output voltage:50V-220V(Output voltage < = Input supply voltage), Maximum output power: 2000W and Maximum output current :25A, Operation environment temperature:-20'C-40'C;High efficiency,high torque,low heat generating, PWM_AC 50-220V 2000W(max) 25A SCR Constant Voltage AC Motor Speed Controller LED Dimmers
Dimensions
Width
  • 3 cm
Height
  • 3 cm
Weight
  • 50
Power Features
Battery Type
  • NA
No Of Batteries
  • NA
Battery Size
  • NA
Power Source
  • DC
Other Power Features
  • NA
