Green Tribe DC MCB 1000V 20A CHINT - 01 Qty MCB (4)

Price: Not Available

Currently Unavailable

Warranty

NIL

Highlights

DC MCB
MCB
DC MCB 1000V
DC MCB 4 POLE
GREEN TRIBE

Description

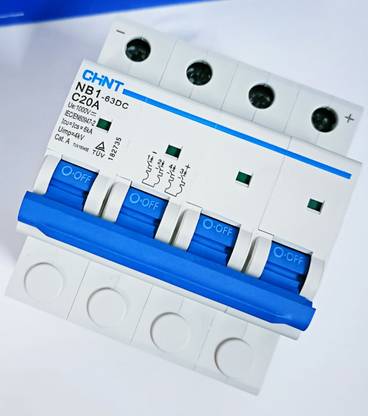

NB1-63DC DC Circuit Breaker General Certificates: CCC,CE,CB,SAA,TUV; Standard: IEC/EN 60947-2 ,RoHS; Rated voltage up to 1000V, Rated current up to 20A; Protection of circuits against overload currents; Protection of circuits against short-circuit currents; NB1-63 DC circuit-breakers are used in communication systems and PV DC systems. Features Hight breaking capacity Connection type :Wire and busbar Storage operation make on/off faster Installation and disassembly convenient color coded contact position indicator provides visual indication of the device status and insulation function.

Specifications

In The Box

Sales Package

DC MCB 1000V 20A CHINT - 01 Qty

General

Brand	Green Tribe
Model Number	- 01 Qty
Model Name	DC MCB 1000V 20A CHINT
Current Rating Range	20 A
Number of Poles	4
Curve Characteristics	NB-1
Mounting Type	Rail
DIN Rail Mount Type	35 mm
Suitable For	SOLAR

Dimensions

Width	6 cm
Height	7.5 cm
Weight	250 g

Warranty

Warranty Summary	NIL
Covered in Warranty	NIL
Not Covered in Warranty	NIL
Warranty Service Type	NIL
