GreenRabbit TowerPro MG996R Metal Gear Servo Motor 360 degree Motor Control Electronic Hobby Kit
Sale starts in08 hrs : 12 mins : 30 secs

GreenRabbit TowerPro MG996R Metal Gear Servo Motor 360 degree Motor Control Electronic Hobby Kit

Price: Not Available
Currently Unavailable
Highlights
  • Power Source: DC
  • Material: Plastic
  • Weight: 55
Description

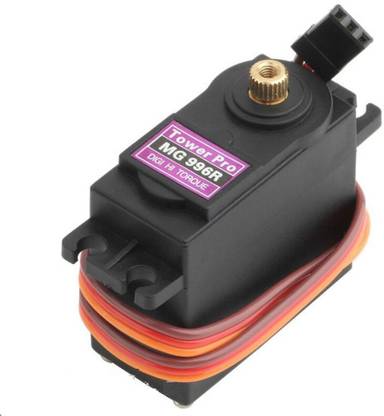

The MG996R Digital Servo from TowerPro features all metal gearing resulting in 10kg torque and 55g weight! The MG996R is essentially an upgraded version of the famous MG995 servo, and features upgraded shock-proofing and a redesigned PCB and IC control system that make it much more accurate than its predecessor. The gearing and motor have also been upgraded to improve dead bandwith and centering! This is a custom made version of the MG996R servo, which can fully rotate in 360 degrees in both clockwise and counter-clockwise directions. You can use any servo code, hardware or library to control these servos, so it's great for beginners who want to make stuff move without building a motor controller with feedback & gear box, especially since it will fit in small places. The unit comes complete with 15cm wire and 3 pin 'S' type female header connector that fits most receivers, including Futaba, JR, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum and Hitec. They work great with our UltraBorg servo and ultrasonic control board, and other Raspberry Pi Motor Controllers. They're also great for the Arduino Motor Shield - or simply by wiring up Arduino with the Servo library. You can use any servo code, hardware or library to control these servos, so it's great for beginners who want to make stuff move without building a motor controller with feedback & gear box, especially since it will fit in small places. Towerpro Servo's comes with a selection of arms and hardware to get you set up nice and fast!
Read More
Specifications
In The Box
  • MG996R servo motor 360 degree rotation, Standard attachments included
General
Brand
  • GreenRabbit
Model Number
  • TowerPro MG996R Metal Gear Servo Motor 360 degree
Skillset
  • Motor Skills
Type
  • Motor Control
ROHS Complaint
  • No
Material
  • Plastic
Age Group
  • 8-10 Years
Key Features
  • 360 Degree rotation, MG996R High Speed Torque Digital Servo with Metal Gearing, Operating Speed: 60/0.17 degree/second (No Load @ 4.8V), Operating Speed: 60/0.14 degree/second (No Load @ 6.0V)
Dimensions
Width
  • 4 cm
Height
  • 3 cm
Weight
  • 55
Power Features
Battery Type
  • NA
No Of Batteries
  • NA
Battery Size
  • NA
Power Source
  • DC
Other Power Features
  • Operating Voltage : 4.8 to 7.2V, Operating Temperature Range: 0? to 55?, Operating Speed: 60/0.17 degree/second, Operating Speed: 60/0.14 degree/second, Stall Torque: 9.4 kg/cm @ 4.8V, Stall Torque: 12 kg/cm @ 6V, Running Current 500mA - 900mA @ 6V, Stall Current 2.5A @ 6V, Gear Type: All Metal Gears
