gyzmofreakz IR Infrared Sensor Module Reflective Photoelectric Light Intensity DIY Kit for Arduino UNO (Pack of 5 pcs) Security Circuit and Sanitizer Spray Machine Motion Detector Security Circuit and Motion Detector Electronic Hobby Kit Security Circuit and Motion Detector Electronic Hobby Kit

gyzmofreakz IR Infrared Sensor Module Reflective Photoelectric Light Intensity DIY Kit for Arduino UNO (Pack of 5 pcs) Security Circuit and Sanitizer Spray Machine Motion Detector Security Circuit and Motion Detector Electronic Hobby Kit Security Circuit and Motion Detector Electronic Hobby Kit

Price: Not Available
Currently Unavailable
Warranty
10 DAYS REPLACEMENT
Highlights
  • Power Source: DC
  • RoHS Compliant
  • Material: Fiber
  • Weight: 0.5
Description
Range : 10-15 cm|2.Input supply voltage: 5V DC|3.Three pin burg male header for easy interface. |4.Comes with an easy to use digital output pin|5.2.5mm diameter hole for easy mounting.|6.5V operated, easy to interface with wide range of micro-controller, Like ARDUINO, AVR, ARM, 8051, PIC, MSP430 etc. Digital output. Output Voltage for Logic one(+3.5v) and Logic Zero(0) 0.0v Interface with ARDUINO, AVR, 8051, PIC, ARM, MSP430 (Green) COMPATIBLE WITH ARDUINO, RASPBERRY PI, ARM, AVR, PIC, 8051, etc. | Useful for various Robotic Applications, Room Visitor Counter Systems, etc. Adjustable Range using preset (Using Potentiometer On board) | Mounting Hole of 2.5mm diameter for Easy Mounting. Operating Voltage : 5V DC Digital Output : logic one (+3.5V DC) logic zero (0V DC) This can in turn be used for detecting white/black lines (in line follower ROBOTs) or bright/dark objects (in object identification ROBOTs) Note: Colors varies as per availability.
Read More
Specifications
In The Box

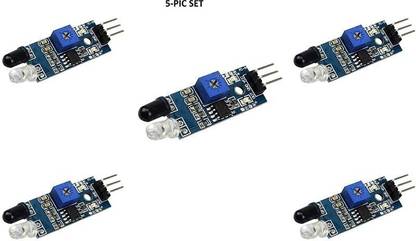

  • 5 PCS OF IR Obstacle line proximity sensor module
General
Brand
  • gyzmofreakz
Model Number
  • IR Infrared Sensor Module Reflective Photoelectric Light Intensity DIY Kit for Arduino UNO (Pack of 5 pcs) Security Circuit and Sanitizer Spray Machine Motion Detector Security Circuit and Motion Detector Electronic Hobby Kit
Skillset
  • Problem Solving, Sensory Development, Problem Solving
Type
  • Security Circuit and Motion Detector
Minimum Age
  • 8
ROHS Complaint
  • Yes
Material
  • Fiber
Age Group
  • 8-10 Years
Lights
  • Yes
Key Features
  • IR Infrared Obstacle Avoidance Sensor Module can be widely used in robot obstacle avoidance, obstacle avoidance car, line count, and black and white line tracking and so on, the module detects the distance 2 ~ 30cm, detection angle 35 °, the distance can detect potential is adjusted, The output port OUT sensor module can be directly connected to the microcontroller IO port, you can directly drive a 5V relay, it has a pair of infrared transmitting and receiving tube, tube infrared emit a certain frequency, when detecting direction meet with obstacles (reflecting surface), reflected infrared receiving tube, after the comparator circuit processing, green indicator will light up, at the same time signal output interface to output digital signal (a low level signal), Can be used for 3-5V DC power supply modules. It has red power indicator.
Dimensions
Width
  • 3 cm
Height
  • 1.5 cm
Weight
  • 0.5
Warranty
Warranty Summary
  • 10 DAYS REPLACEMENT
Service Type
  • ON SITE WARRANTY
Covered in Warranty
  • MANUFACTURING DEFECT
Not Covered in Warranty
  • PHYSICAL DAMAGE
Power Features
Battery Type
  • DC
No Of Batteries
  • 0
Battery Size
  • DC
Power Source
  • DC
Power Consumption
  • 3.3V to 5V
Other Power Features
  • 3-5V DC power supply module can be used. When the power is turned on, the red power LED is lit
