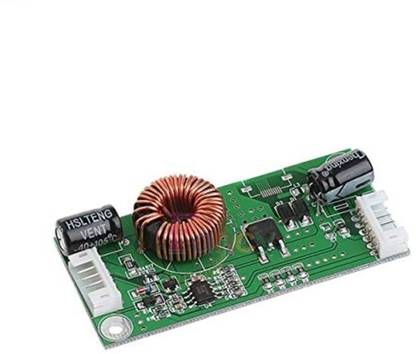

HARI ENTERPRISE 14-37 Inch LED LCD Universal TV Backlight Constant Current Board Driver Boost Step Up Module VCC PWM 12V 24V Module Miscellaneous Electronic Hobby Kit

Description: 1.14-37 inch LED Backlight Lamp Driver Board Constant current board 2.BOOST structure,Conversion efficiency reached more than 92% 3.Low heat of the Device, stability,have a longer service life 4.The PCB is small,Slim design,Current control error within ± 5% 5.This product is constant current board, voltage is automatically adapted Specification: Common Electronic symbolic code of Backlight: VCC: The positive of voltage supply, Circuit supply voltage (voltage is usually 12V or 24V) ON/OFF,ON,EN,ON_BL: Switch signal pin PWM,PDIM,VDAJ,BL-PWM: Brightness adjusting pin GND: Ground (negative electrode) LED+: the positive electrode of Light emitting diode (lamp) LED-: the negative electrode of Light emitting diode (lamp) The temperature rise is controlled at about 25degrees (Temperature rise = device surface temperature - ambient temperature) Limit parameter: 24V input: Vout = 75V Iout= 720mA maximum or 60W 12V input: Vout = 75V Iout = 400mA maximum or 30W You can use the 12V power supply to reduce the system cost Warm Tip Limit parameter refers to the the maximum capacity when product in the application process.In fact,please under the limit parameters to ensure product reliability when using.
