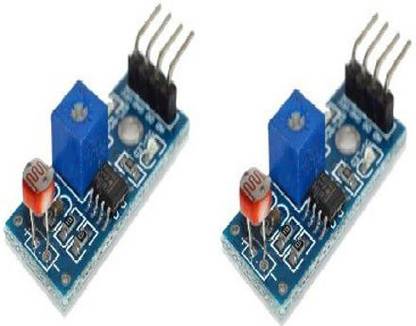

HemCorp Photo-Resistor LDR Sensor Module with 10k Ohm 3362 veriable Potentiometer for sensitivity adjust , (0 and 1)D0+1AO (Pack Of 2) Micro Controller Board Electronic Hobby Kit

Operating voltage 3.3v-5v. Output type. Analog voltage output -a0. Digital switching outputs (0 and 1) -d0. With fixed bolt hole for easy installation. Small board pcb size: 3cm x 1.6cm. Power indicator (red) and the digital switch output indicator (green). Using lm393 comparator chip, stable. Pin outs: External 3.3v-5v vcc. External gnd. Do digital output interface, a small plate (0 and 1). Ao small board analog output interface. How to use: Photosensitive resistor module most sensitive to environmental light intensity is generally used to detect the ambient brightness and light intensity. Module light conditions or light intensity reach the set threshold, do port output high, when the external ambient light intensity exceeds a set threshold, the module d0 output low, digital output d0 directly connected to the mcu and detect high or low ttl, thereby detecting ambient light intensity changes, digital output module do can directly drive the relay module, which can be composed of a photoelectric switch, analog output module ao and ad modules can be connected through the ad converter, you can get a more accurate light intensity value.
