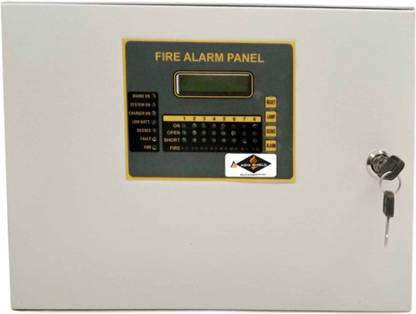

The Agni Shield Fire Alarm Panel is a sophisticated and reliable fire detection system designed to enhance early warning capabilities and ensure swift response in the event of a fire. Available Zones:- 2, 4, 6,8,10,12,16
Read More
Specifications
In The Box
1
General
Brand
agni shield
Model Number
8 Zone Fire Alarm Control Panel
Material
Powder Coated Steel
Suitable For
Commercial
Net Quantity
1
Key Features
16X2 Dot Matrix LCD Display, Standby Backup With Built in Charging, Fire/ Fault Status in Unambiguous Colored LED Indication, Switch Mode Power Supply, Tactile Keypad For Easy Panel Operation, System ON Indication, Low Battery Visual Warning, Relay Output For Actuators, For Fire & Fault, Compatible to all Type of Conventional Detectors
Additional Features
Power I/P :- AC - 230V, 50HZ + 5% DC - 24V, Housing :- CRCA Sheet, Power Consumption :- 30 Watt, Zone Wise Output Supply & Hooter Output Supply :- 24V DC
Dimensions
Width
32.5 cm
Height
25.8 cm
Weight
4.7 kg
Other Dimensions
352 x 258 x 107 MM
Warranty
Warranty Summary
NA
Service Type
NA
Covered in Warranty
NA
Not Covered in Warranty
NA
