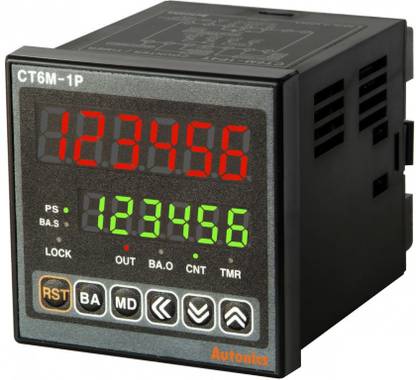

autonics CT6M-1P4 Digital Counter/Timer Multipurpose Controller

Price: Not Available

अभी उपलब्ध नहीं है

Warranty

जानकारी

New CT series adopts communication function so that each parameter setting and monitoring can be available from PC. In addition, it allows up to 6 digit prescale setting possible to provide user convenience. Increased contact capacity of load to 5A and new design nameplate are another features of NEW CT series. ( ? NOTE that existing CT series will be discontinued.

Specifications

In The Box

Sales Package

Multipurpose Controller

General

Brand	autonics
Model Number	CT6M-1P4 Digital Counter/Timer
Type	Wireless
Power Source	100 to 240 V AC~ 50/60Hz
Material	ABS Plastic
Color	Black
Bluetooth Enabled	No
Wifi Enabled	No
Compatible Devices	Digital Counter/Timer
Range	6

Additional Features

Other Features

Manufacturer: Autonics, Model: CT6M-1P4, Maximum Counting Speed: 1, 30, 1k, 5k, 10k [cps], Signal Input Voltage: Voltage input(PNP), No-voltage input(NPN), Minimum Signal Width: 1ms/20ms, Setting Range: 0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour., Control Output Type: 1-Stage preset, Control Output Relay: SPDT (1c): 1, Counter_Counting Range: -99999 to 999999, Timer_Min. input signal width: INA, RESET, INHIBIT, BATCH, RESET: Selectable 1ms/20ms., Protection Class: IP65(front panel)
