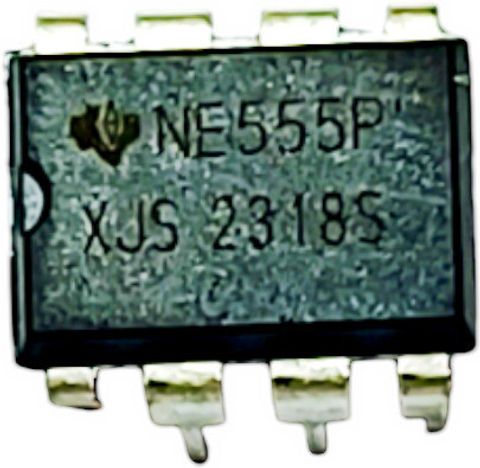

AVISRI 15 PCS NE555 Timer IC,High Stability, Adjustable Timing,Tr...

more

The NE555 is a highly versatile and widely used timer IC that generates timing signals, oscillations, and pulses, featuring high stability, adjustable timing, and a high-current output. It can be used in a wide range of applications, including alarm and security systems, power supplies, audio and video equipment, and more. With its simple design, low cost, and high stability, the NE555 is a popular choice for many electronic projects.1. Timer/ Oscillator: Can be used as a timer or oscillator 2. High Stability: Provides high stability and accuracy 3. Adjustable Timing: Timing can be adjusted using external resistors and capacitors 4. Output: Provides a high-current output (up to 200mA) 5. Trigger and Reset: Has separate trigger and reset inputs Pin Configuration 1. VCC: Positive power supply (5-15V) 2. GND: Ground 3. TRIG: Trigger input 4. THR: Threshold input 5. DIS: Discharge input 6. OUT: Output 7. RES: Reset input 8. CV: Control voltage input Electrical Characteristics 1. Power Supply: 5-15V 2. Timing Range: 10?s to several hours 3. Output Current: Up to 200mA 4. Propagation Delay: 100ns (typical) Applications 1. Timing and Oscillation: Generates timing signals, oscillations, and pulses 2. Alarm and Security Systems: Used in alarm and security systems 3. Power Supplies: Used in power supplies for voltage regulation 4. Audio and Video Equipment: Used in audio and video equipment for timing and control Benefits 1. High Versatility: Can be used in a wide range of applications 2. Easy to Use: Simple to design and implement 3. Low Cost: Relatively inexpensive compared to other timer ICs 4. High Stability: Provides high stability and accuracy
