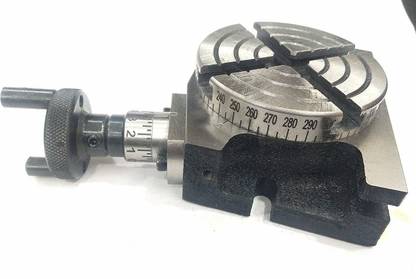

Bliudskill Rotary Table 3" Inch/80 mm Horizontal - Vertical for Milling Stubby Screwdriver  (Pack of 1)

Rotary table, milling tool, round table for milling,4 slot rotate Size - 3" Inch/80 mm The Metal : High quality 18 Gauge Mild Iron steel with Brass Accents. Mini Rotary Table 3" 80mm Horizontal Vertical Model Milling Machine 4 Slots Product details : The Metal : High quality 18 Gauge Mild Iron steel with Brass Accents. THIS NEAT LITTLE ROTARY TABLE, WITH A DIAMETER OF 75MM, CAN BE USED FOR A VARIETY OF MILLING, DRILLING AND MARKING OUT OPERATIONS IN THE HOME ENGINEER'S WORKSHOP. THERE ARE FOUR TEE SLOTS FOR SECURING THE WORK, FACES MACHINED AT RIGHT ANGLES FOR HORIZONTAL AND VERTICAL MOUNTING AND 7MM SLOTS FOR SECURING TO THE MACHINE TABLE. THE INDEXING HANDLE, WHICH ROTATES ONCE FOR EVERY TEN DEGREES OF TABLE ROTATION, IS SUBDIVIDED IN DEGREES AND QUARTER DEGREES. THE CENTRE HEIGHT WHEN MOUNTED VERTICALLY IS 40MM. SUPPLIED WITH WORK CLAMPING KIT. VERTICAL AND HORIZONTAL MOUNTING TEE SLOTS FOR SECURING WORK WHEEL MARKED IN DEGREES AND QUARTER DEGREES Description: A Precision work positioning device used in metalworking, enabling the operator to drill or cut work at exact intervals around a fixed axis. Rotary tables are most commonly mounted "flat", with the table rotating around a vertical axis, in the same plane as the cutter of a vertical milling machine. An alternate setup is to mount the rotary table on its end (or mount it "flat" on a 90° angle plate), so that it rotates about a horizontal axis. In this configuration a tailstock can also be used, thus holding the work piece "between centers." Application: Horizontal/Vertical Rotary Tables are extremely useful accessories for a milling machine. Simple to operate, they allow easy work handling and have many varied applications including: Milling : Milling curved profiles and angled faces relative to a centre line. Drilling or milling to polar co-ordinates and, when mounted vertically with a tailstock they can be used to machine shafts or spindles. The versatile units can also be used on drilling, boring or slotting machines permitting an even greater range of operations. -Machining - To establish the initial work piece position simply loosen the zero Collar lock
