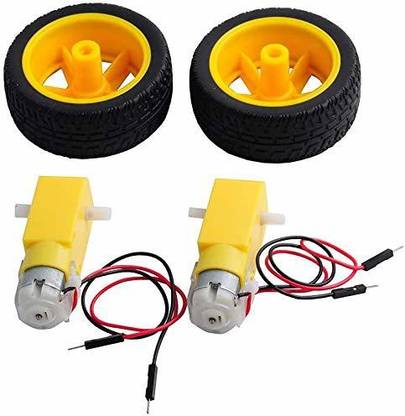

DS Robotics DC Gearbox Motor TT Motor With Tire Wheel DC 3-6V for Arduino Smart Car 1:48 Male Connector, for Arduino ( Set of 2 ) Automotive Electronic Hobby Kit
Price: Not Available
अभी उपलब्ध नहीं है
Highlights
Power Source: DC
Material: Plastic
Weight: 50
जानकारी
TT Motor Description: This is a TT DC Gearbox Motor with a gear ratio of 1:48, and it comes with 2 x 200mm wires with breadboard-friendly 2.54mm(0.1”) male connectors. Perfect for plugging into a breadboard or terminal blocks Rated Voltage: 3~6V Continuous No-Load Current: 150mA +/- 10% Min. Operating Speed (3V): 90+/- 10% RPM Min. Operating Speed (6V): 200+/- 10% RPM Torque: 0.15Nm ~0.60Nm Stall Torque (6V): 0.8kg.cm Gear Ratio: 1:48 Body Dimensions: 70 x 22 x 18mm Wires Length: 200mm 28 AWG Product Weight: 29g / 1.02oz Wheel Feature: Wheel diameter: 65mm Wheel thickness: 28mm
Read More
Specifications
In The Box
2 Piece BO Wheel with BO Motor
General
brand
DS Robotics
Model Number
DC Gearbox Motor TT Motor With Tire Wheel DC 3-6V for Arduino Smart Car 1:48 Male Connector, for Arduino ( Set of 2 )
